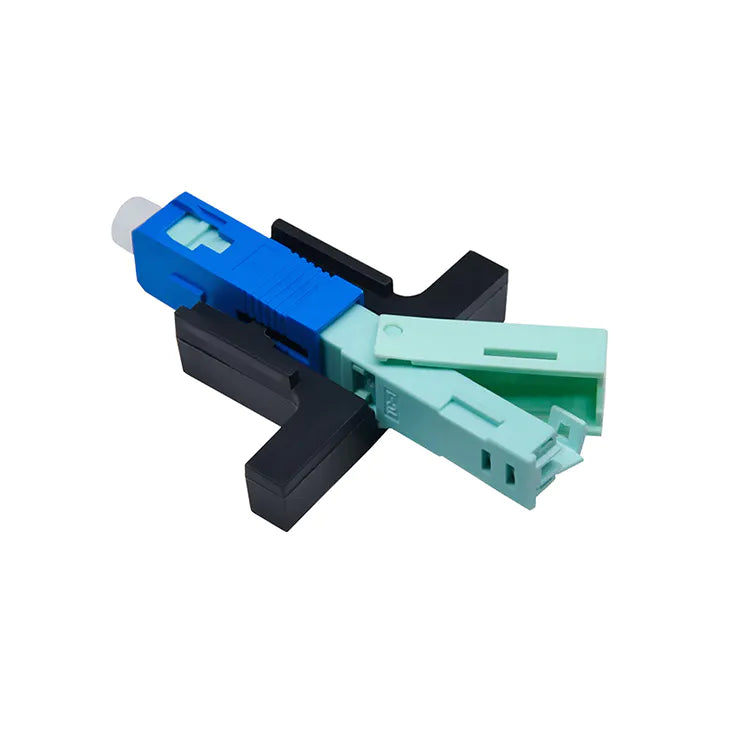

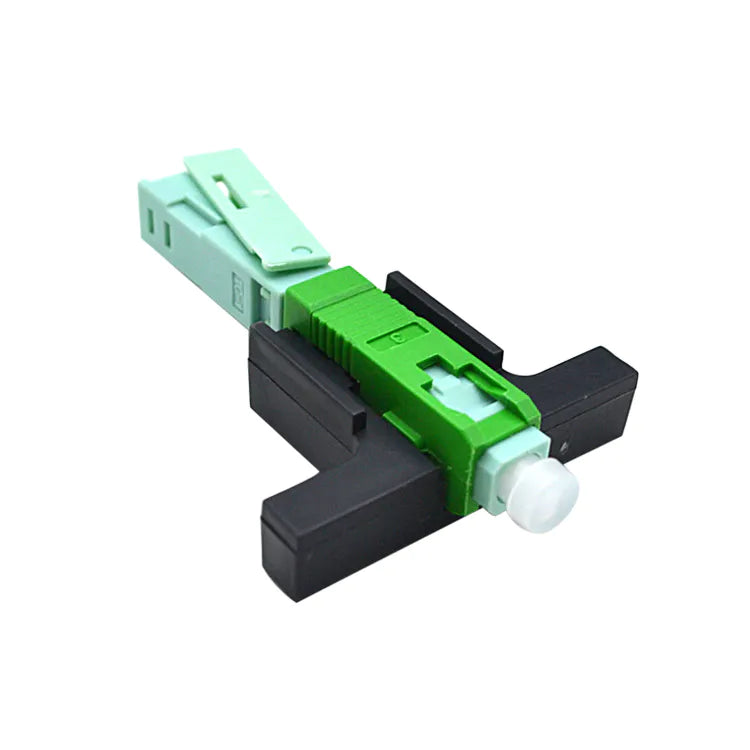

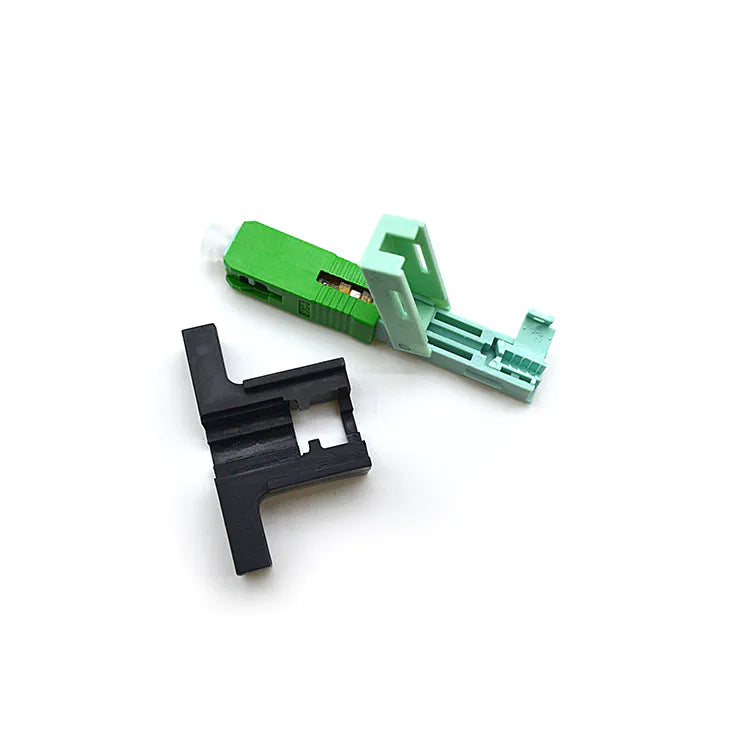

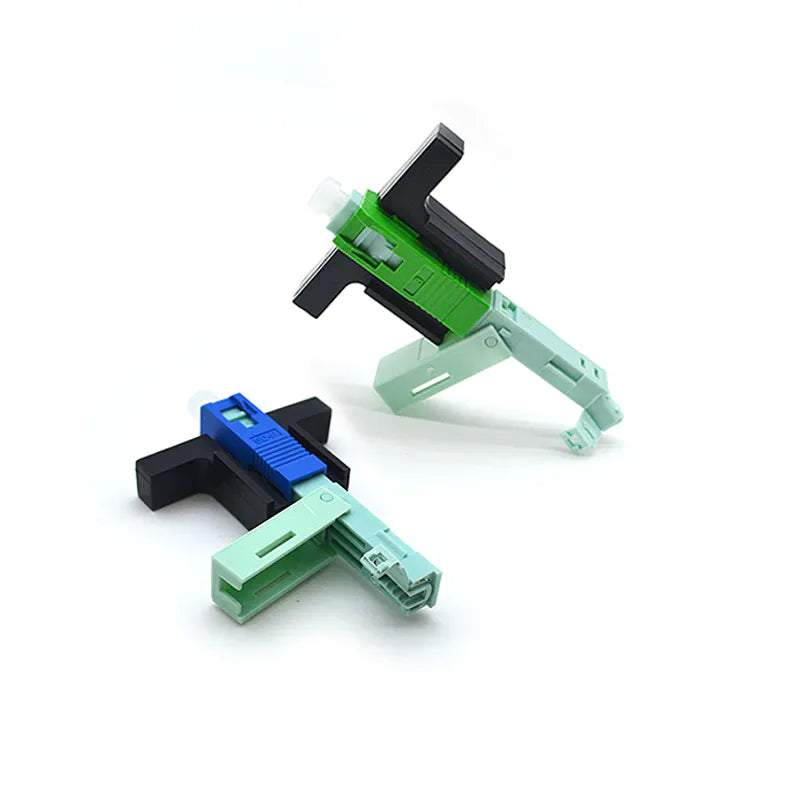

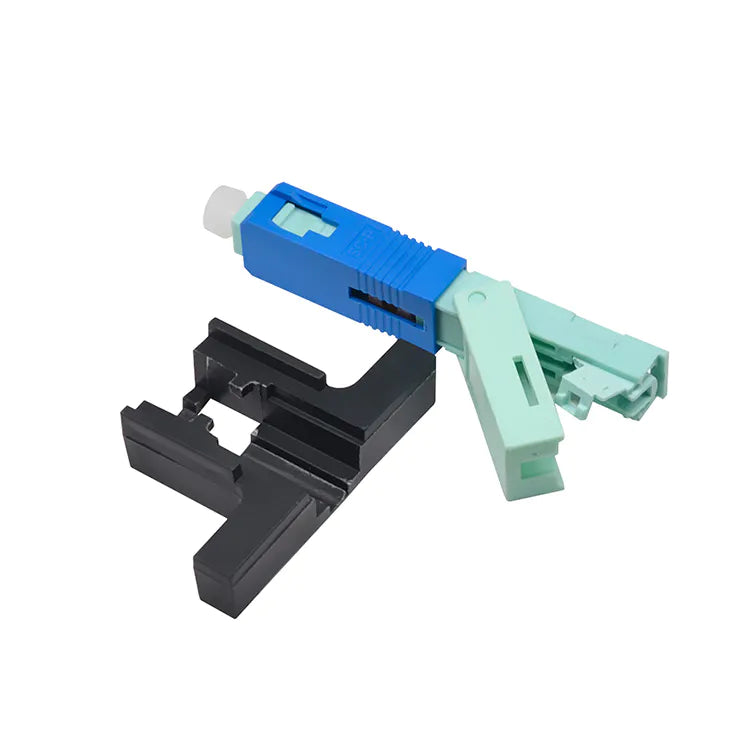

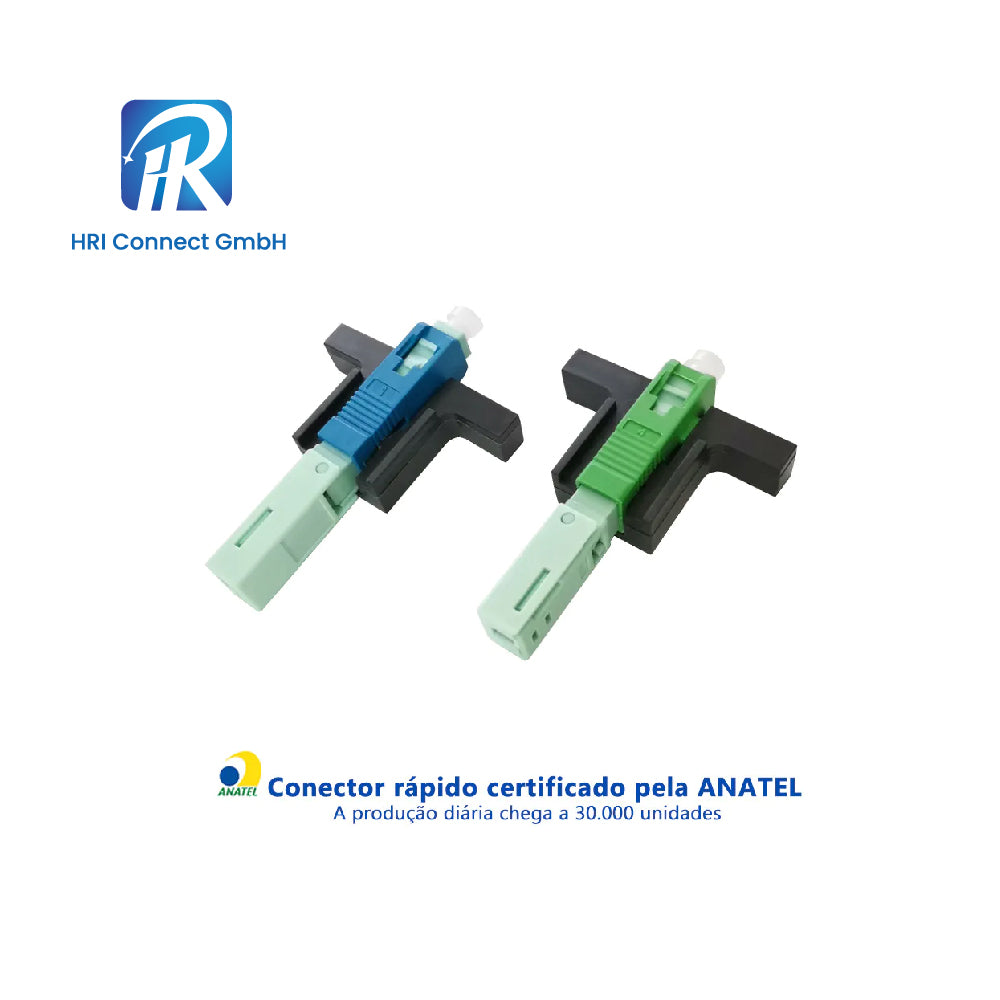

Spiral Types SC/APC (UPC) Fiber Optic Fast Connector Quick Assembly Single Mode

Spiral Types SC/APC (UPC) Fiber Optic Fast Connector Quick Assembly Single Mode

Model: 5506

MOQ: >500

Material: PC+ABS

Brand: HRI

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day

View full details

Product Description

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Product information

Type Mode SC/APC(UPC) Connector Cable Type 2.0*3.0mm

Return Loss

≤55dB

Insertion Loss

≤.0.3dB
Bare Fiber Strength >5N Clad Strength >10N
Tension >50N
Mechanical durability(500times) IL≤0.2dB & RL≤5dB Tensile Strength(20N) IL≤0.2dB & RL≤5dB
Operating Temperature -5°c ~ +70°c Storage Temperature -40°c ~ +85°c
Fiber Mode Single Mode Application FTTH Drop Cable, CATV,CCTV,etc

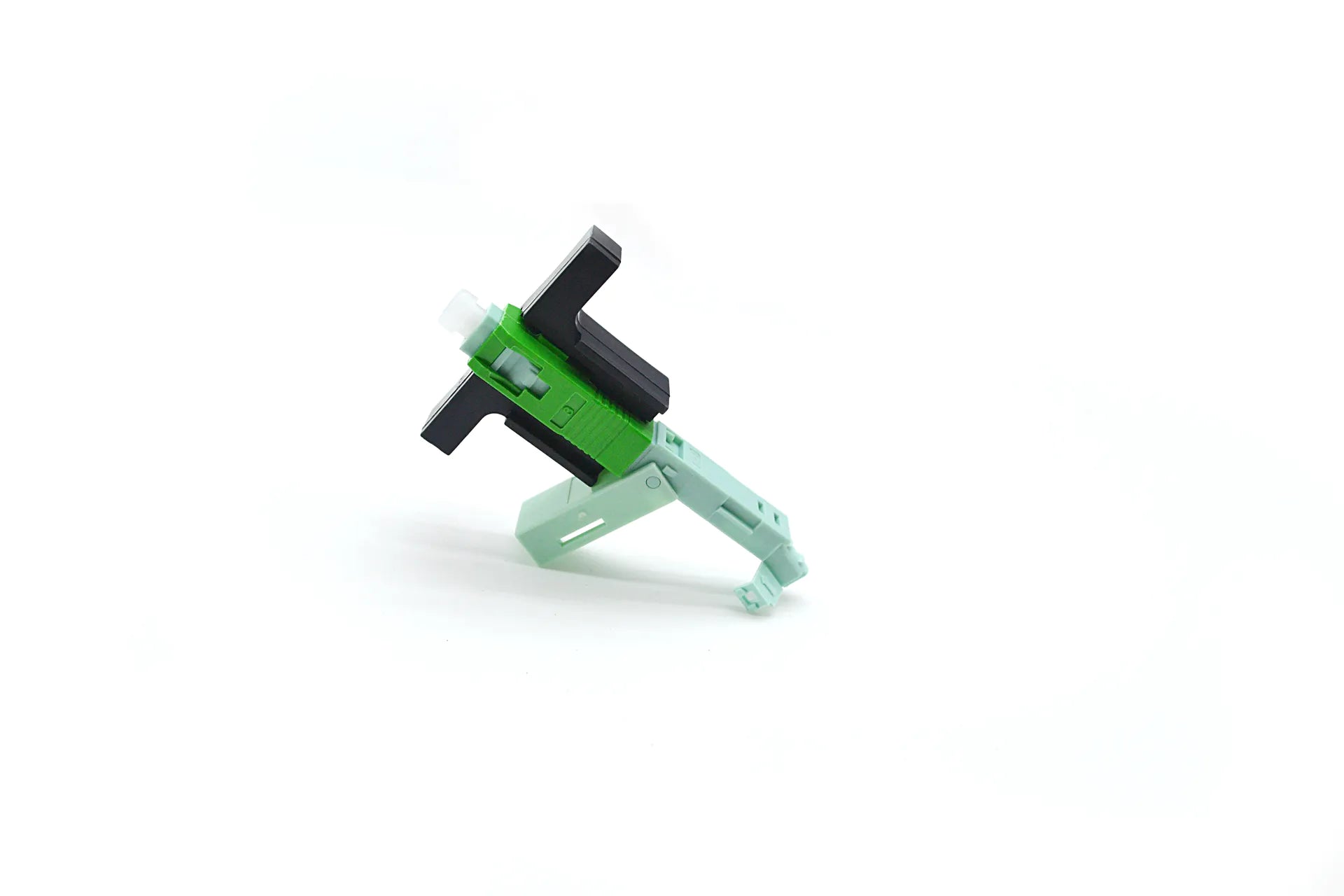

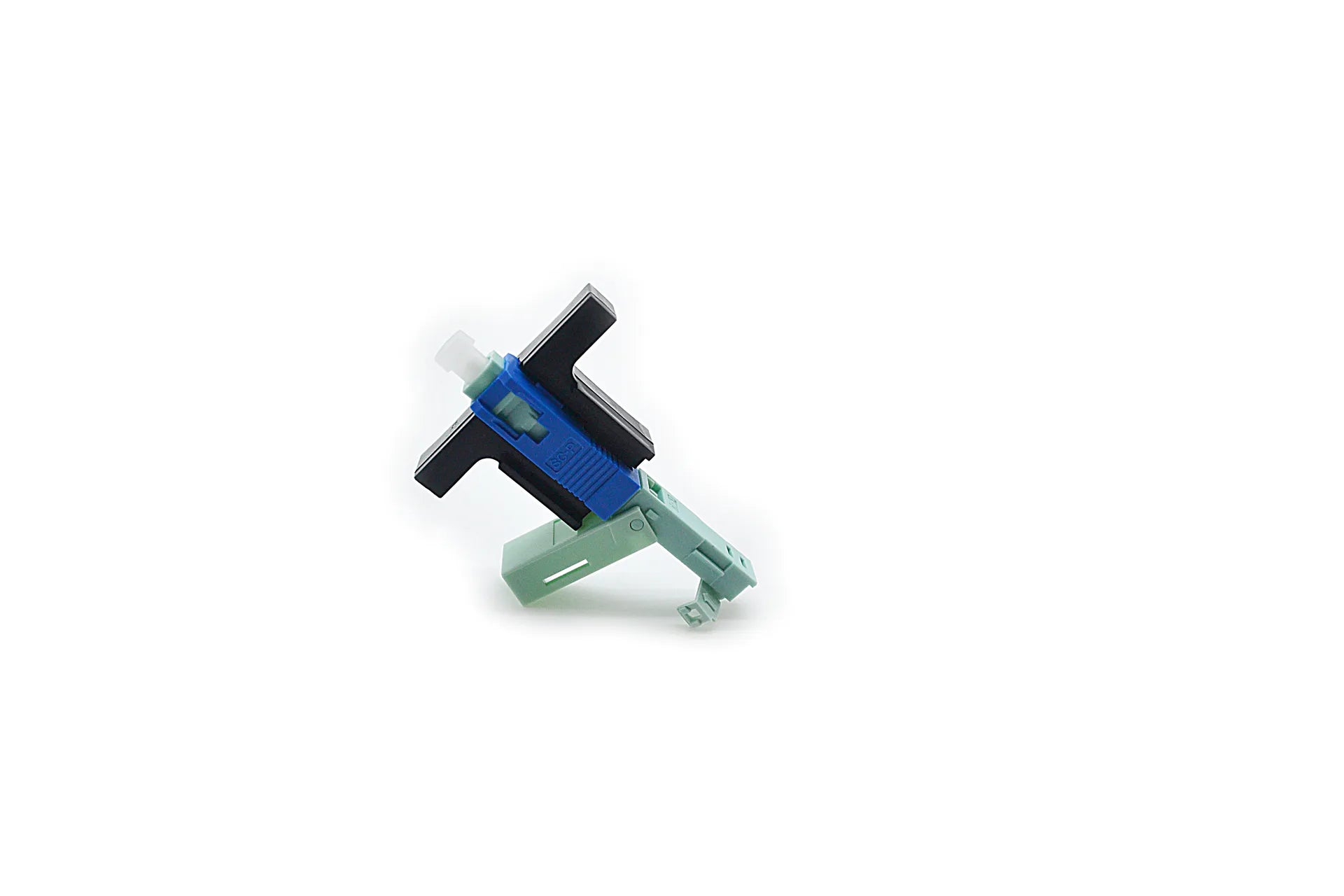

Model

  • SC/APC-L5506

  • SC/UPC-L5506

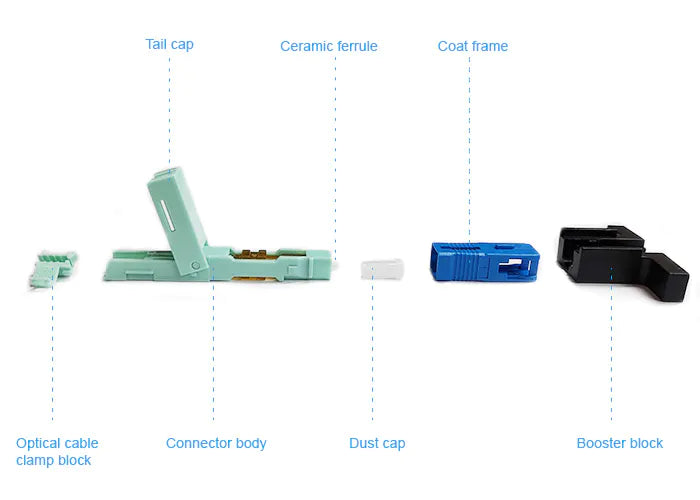

Product Structure

Product Features

1. Precise Mechanical Dimensions

2. Low Insertion Loss

3. High Return Loss

4. Comply standard of IEC61754-4

5. High Repeatability

Applicable Scope

1. Premise envirinments

2. Connections at the desk for LAN environments

3. Patch Panels

4. Direct equipment termination

5. Fiber to the Subscriber(FTTX)applications

6. Repair/replacement requirements

7. Equipment test leads

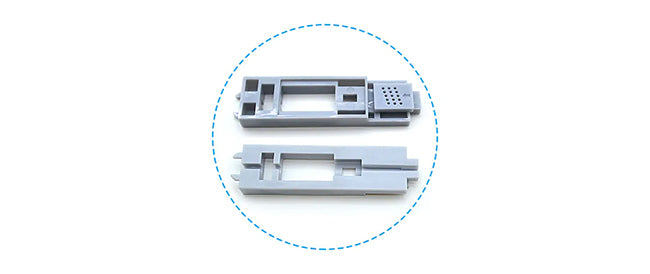

Fiber Cutting Length

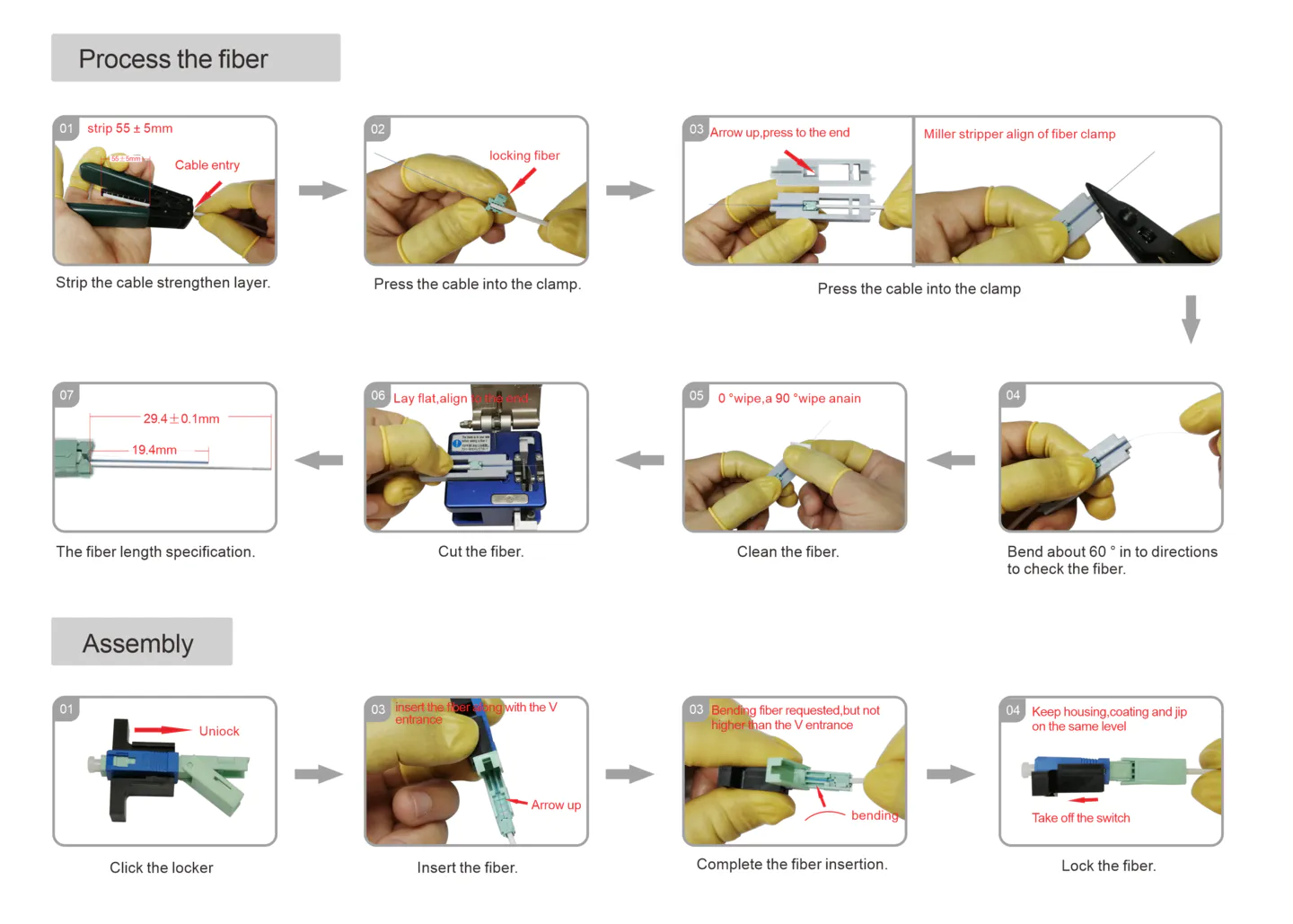

Fast Connector Field Operation
