HRI Connect GmbH

E2000 Fiber Pigtail with 0.9mm Cable for CATV/FTTH/LAN/WAN Networks

E2000 Fiber Pigtail with 0.9mm Cable for CATV/FTTH/LAN/WAN Networks

Model: GC-03-067

MOQ: >500

Material: PVC

Brand: HRI

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 500pcs/day

View full details

Product Description

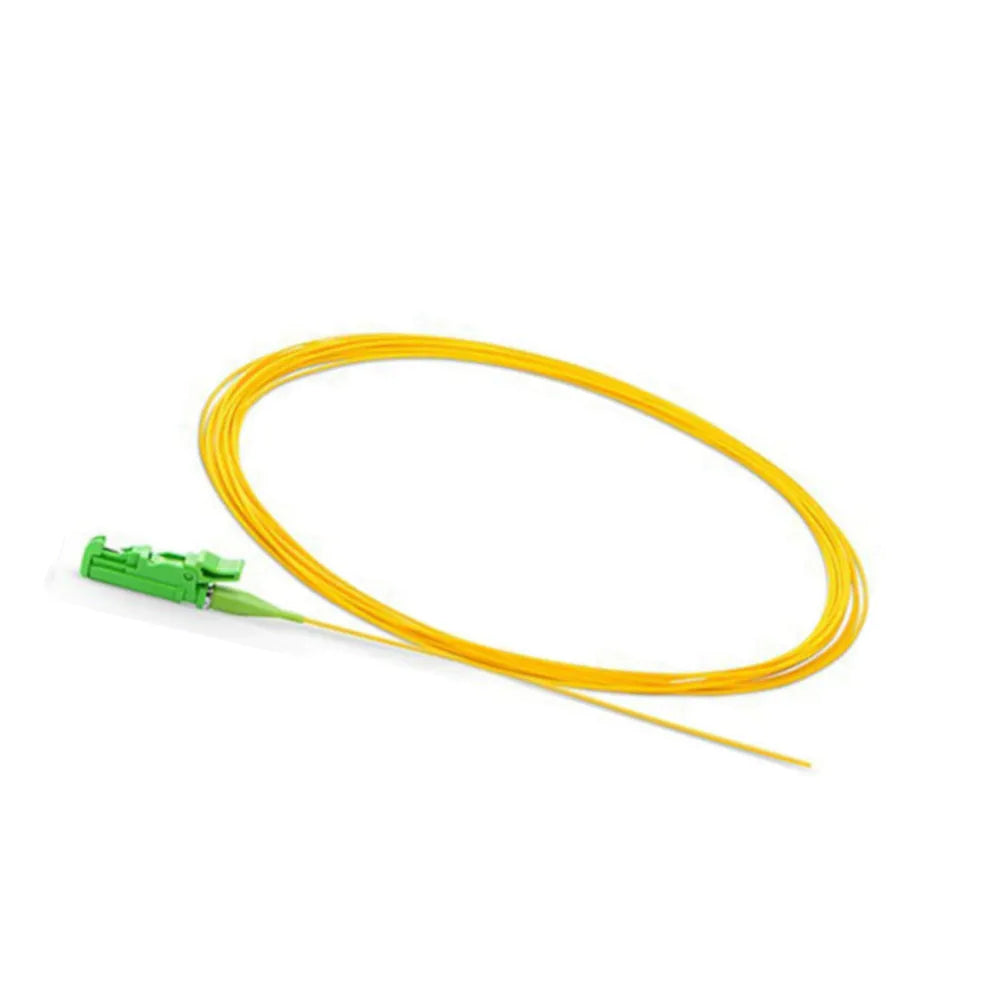

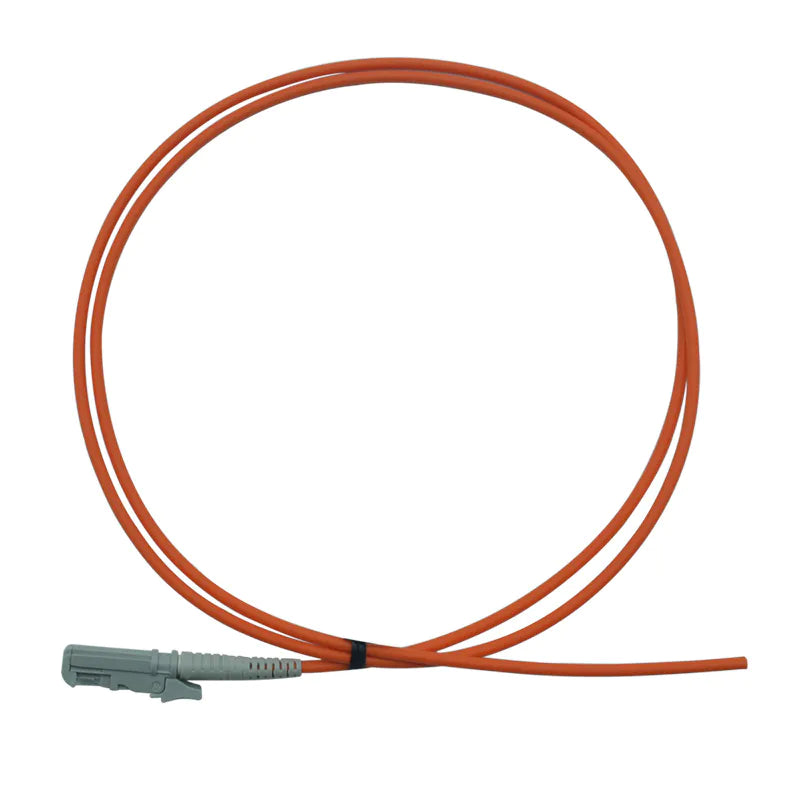

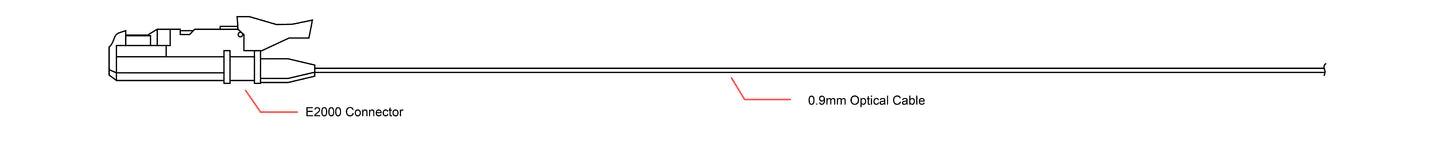

E2000 pigtail is a cable with a high-grade E2000 fiber optic connector on one end, the end unterminated. They can configure single mode and multimode fiber for the specific application. These E2000 pigtail Assemblies are available in UPC and APC polish with simplex or duplex fiber cable versions. Cable length, cable diameter, and jacket are optional. The typical type of fiber pigtail uses 0.9mm cable because it is especially suitable for high-density splice applications.

Product information

Project Specification Standard
Operating Wavelength 1260~1650nm GR-326-CORE;
IEC 61300
Insertion Loss ≤0.3dB(Typical value:0.2dB)
Return Loss ≥60dB(APC)\≥50dB(UPC)
Repeatability ≤0.2dB
Interchangeability ≤0.2dB
Mechanical Endurance  500 times
Working Temperature -40~85℃
Adapter Type E2000 APC

Product Features

1. Low insertion loss and high return loss
2. Excellent end-face geometry parameter
3. Special specifications available upon customer’s request.

Applicable Scope

1. Data Transmission Networks

2. Image transmission Networks

3. CATV

3. Optical test instrument

4. Photoelectric automatic control system

For more information, please contact us

Email: sales@hri-connect.de

Tel: (+49) 8938 9992 58
