Product Description
Product information
| Connector Type | SC to SC |
Polish Type |
APC to APC |
|
Fiber Mode |
OS2 9/125μm |
Wavelength |
1310/1550nm |
|
Insertion Loss |
≤0.3dB |
Return Loss |
≥60dB |
|
Fiber Grade |
G.652.D |
Minimum Bend Radius |
30mm |
|
Attenuation at 1310 nm |
0.36 dB/km |
Attenuation at 1550 nm |
0.22 dB/km |
|
Fiber Count |
Duplex |
Cable Diameter |
3.0mm |
|
Cable Jacket |
PVC |
Polarity |
A(Tx) to B(Rx) |
|
Operating Temperature |
-20~80°C |
Storage Temperature |
-40~80°C |
-

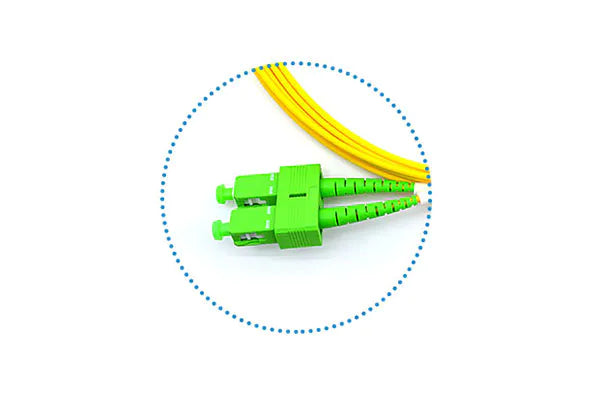

The best insertion loss and return loss ensure stable signal transmission and network security. Good thermal stability, high hardness, strong environmental adaptability.
-

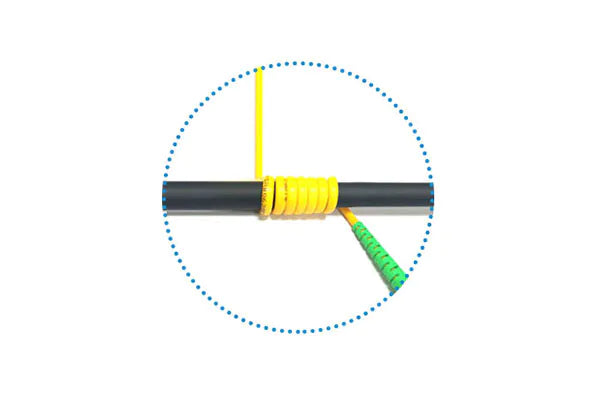

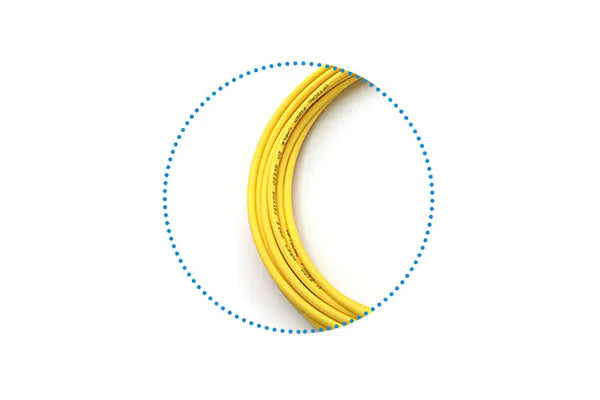

Ultra-high bending performance can meet the requirements of corner bending, improve the utilization of cable, and ensure the normal and stable operation of communication.
-
In the case of extreme fiber bending, the optical signal leaked to the outside of the core due to bending is retained to reduce fiber loss and print clearly.

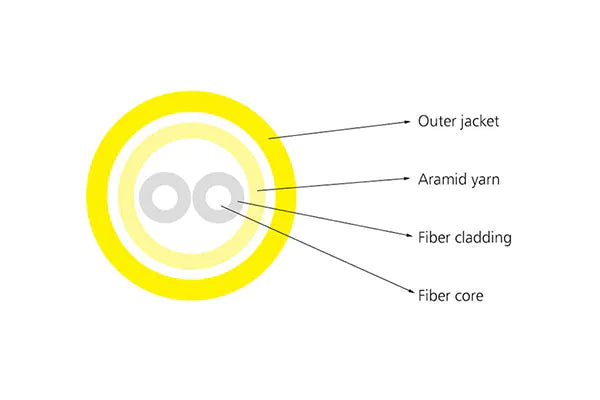

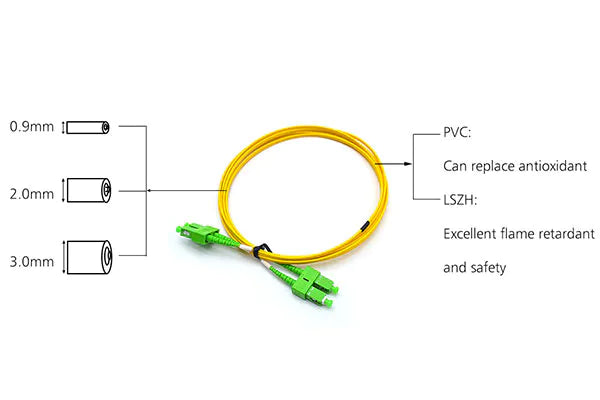

Fiber Optic Cable Structure

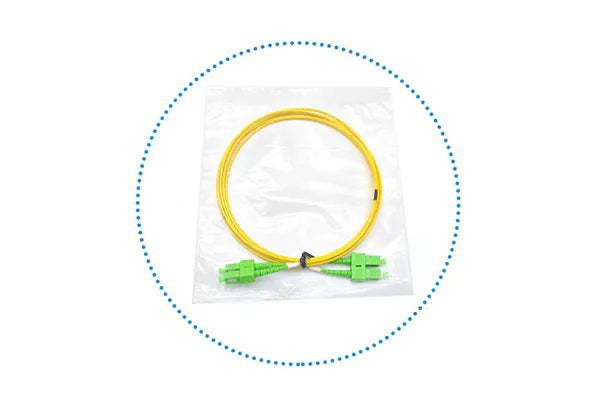

Package Method
-
Tie the line into the PE bag, the connector head position down, product labels affixed to the middle of the PE bag. The long side of the label is parallel to the bottom edge of the PE bag, finally put it into the carton.
-
