Product Description
Product information
| Item | Unit | LC/SC/FC/ST Fiber Patch Cord | ||||
| SM | MM | |||||
| Fiber Diameter | um | 9/125 | 65.5/125 | 50/125 | ||
| Endface Type | PC | UPC | APC | PC | PC | |
| Insertion Loss | db | ≤ 0.2 | ≤ 0.15 | ≤ 0.2 | ≤ 0.1 | ≤ 0.1 |
| Return Loss | db | ≥ 45 | ≥ 50 | ≥ 60 | ||
| Insert-pull Test | db | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.15 | ≤ 0.15 |
| Interchangeability | db | ≤ 0.1 | ≤ 0.1 | ≤ 0.15 | ≤ 0.1 | ≤ 0.1 |
| Temperature Range | ℃ | -40~+80 | ||||
-
The best insertion loss and return loss ensure stable signal transmission and network security. Good thermal stability, high hardness, strong environmental adaptability.
-
-

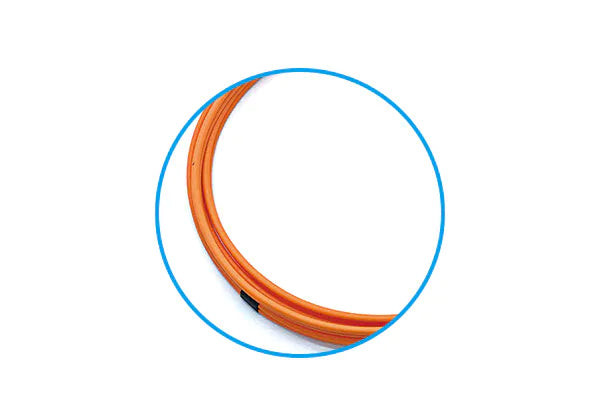

In the case of extreme fiber bending, the optical signal leaked to the outside of the core due to bending is retained to reduce fiber loss and print clearly.
Package Method
-

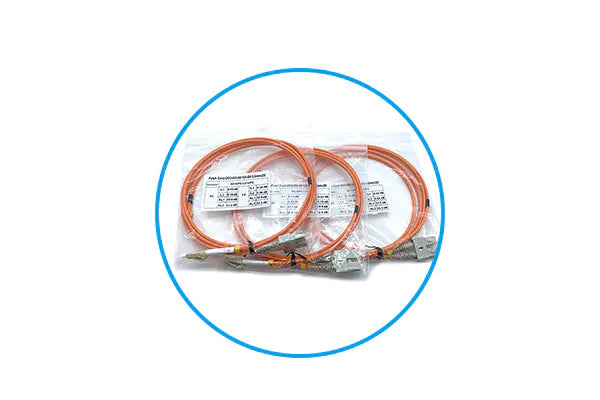

Tie the line into the PE bag, the connector head position down, product labels affixed to the middle of the PE bag. The long side of the label is parallel to the bottom edge of the PE bag, finally put it into the carton.
-
