Product Description
Product information
| Item | Unit | LC/SC/FC/ST Fiber Patch Cord | ||||
| SM | MM | |||||
| Fiber Diameter | um | 9/125 | 65.5/125 | 50/125 | ||
| Endface Type | PC | UPC | APC | PC | PC | |
| Insertion Loss | db | ≤ 0.2 | ≤ 0.15 | ≤ 0.2 | ≤ 0.1 | ≤ 0.1 |
| Return Loss | db | ≥ 45 | ≥ 50 | ≥ 60 | ||
| Insert-pull Test | db | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.15 | ≤ 0.15 |
| Interchangeability | db | ≤ 0.1 | ≤ 0.1 | ≤ 0.15 | ≤ 0.1 | ≤ 0.1 |
| Temperature Range | ℃ | -40~+80 | ||||
-
The best insertion loss and return loss ensure stable signal transmission and network security.Good thermal stability, high hardness, strong environmental adaptability.
-
-

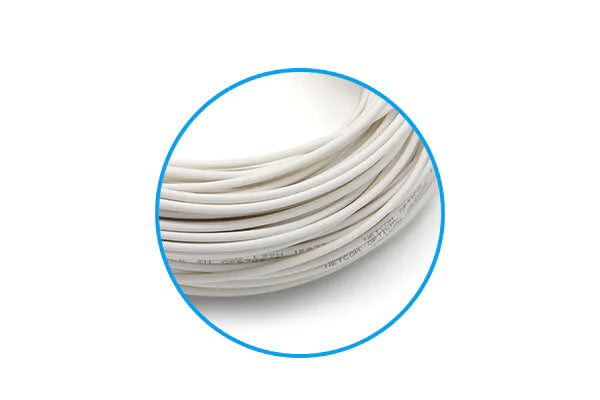

In the case of extreme fiber bending, the optical signal leaked to the outside of the core due to bending is retained to reduce fiber loss and print clearly.
