HRI Connect GmbH

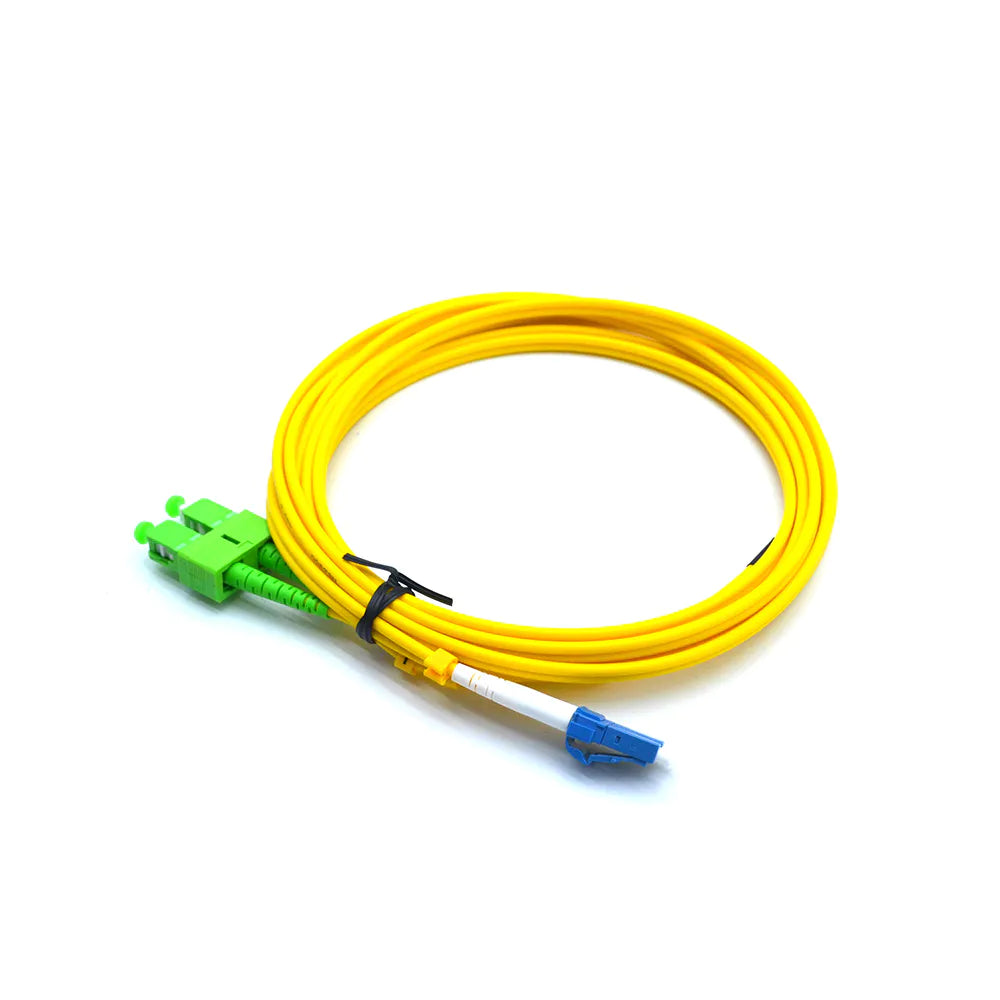

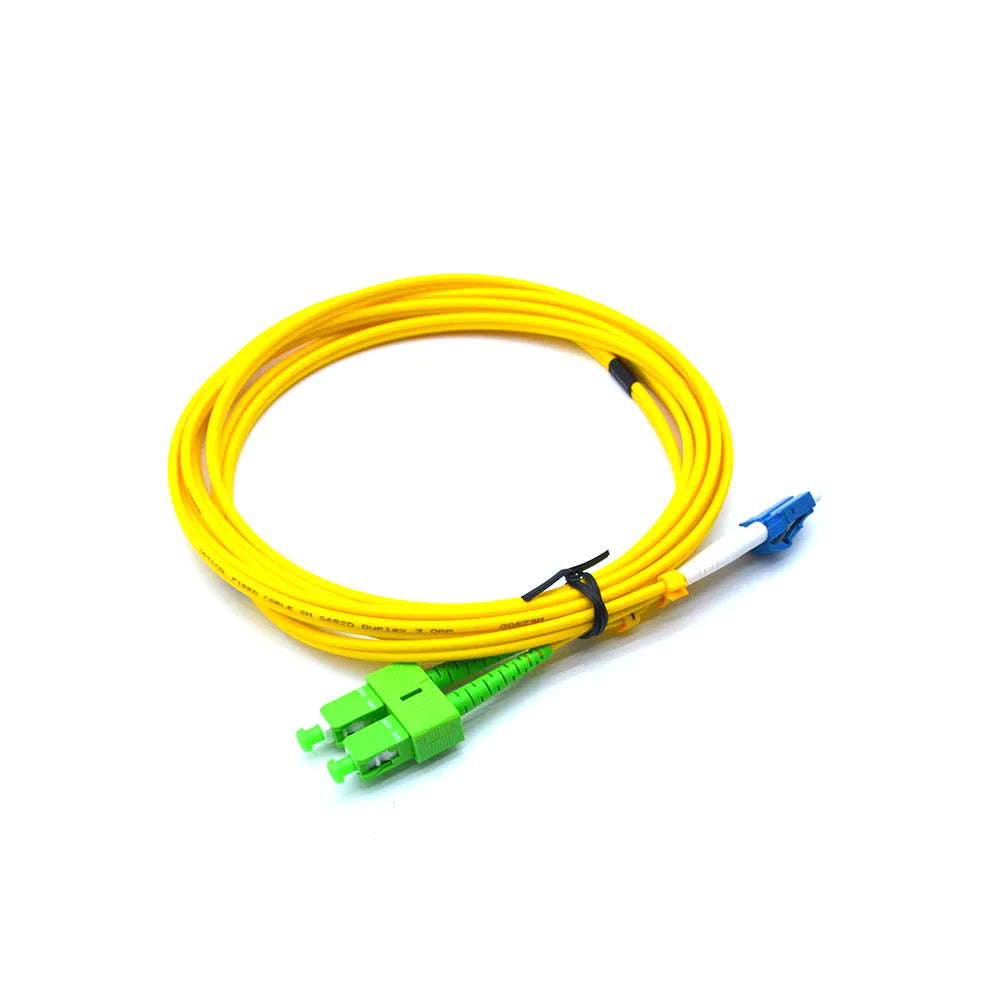

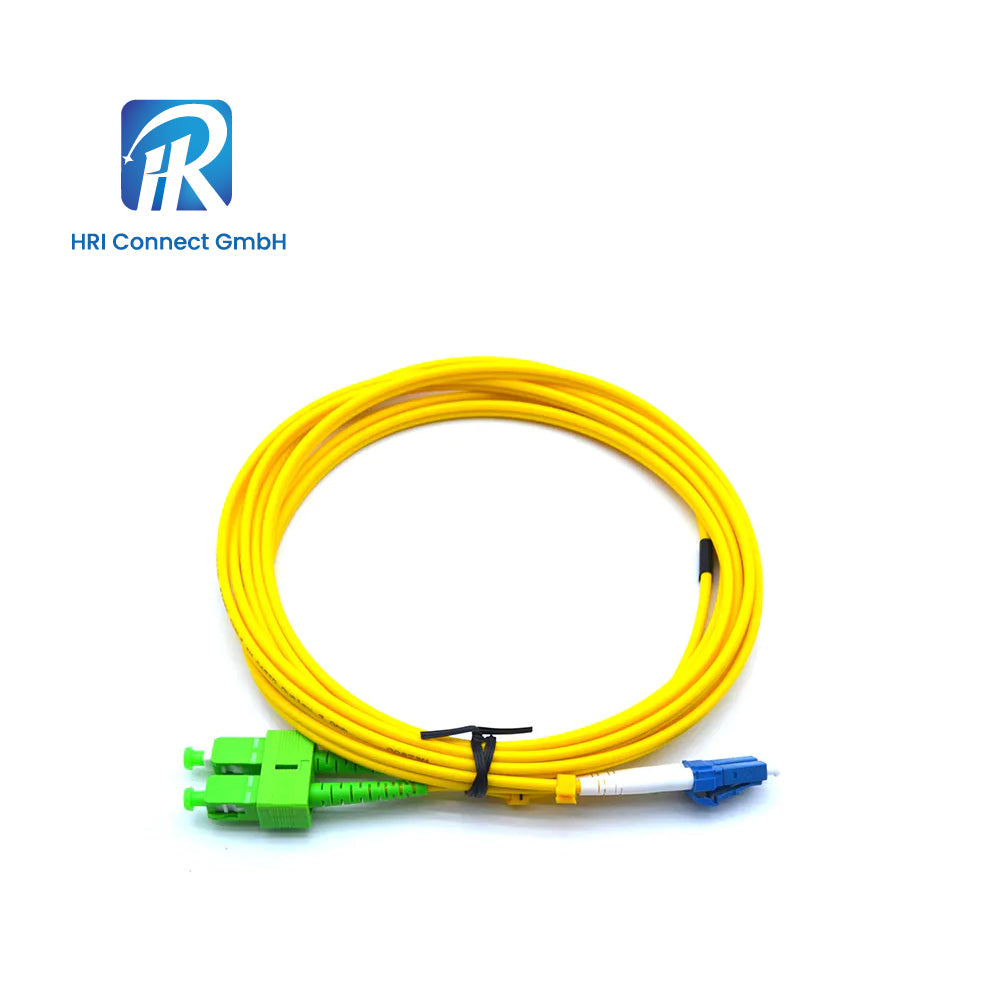

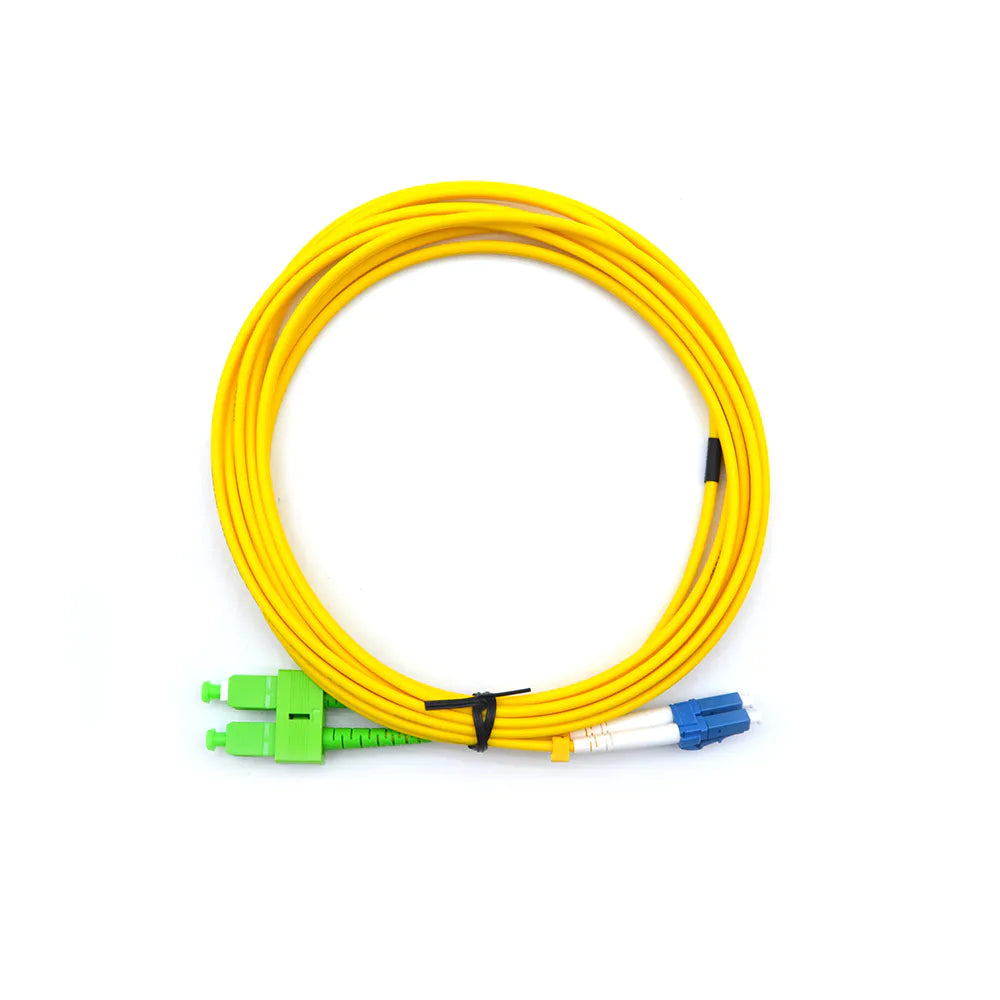

3.0mm Simplex Duplex - LSZH Jacket G657A2 In GPON/EPON Box(Fiber Optic Patch Cord)

3.0mm Simplex Duplex - LSZH Jacket G657A2 In GPON/EPON Box(Fiber Optic Patch Cord)

MOQ: >500

Material: PP

Brand: HRI

Delivery Time: 7-25days

Start Port: Shenzhen

Supply Ability: 1000pcs/day

View full details

Product Description

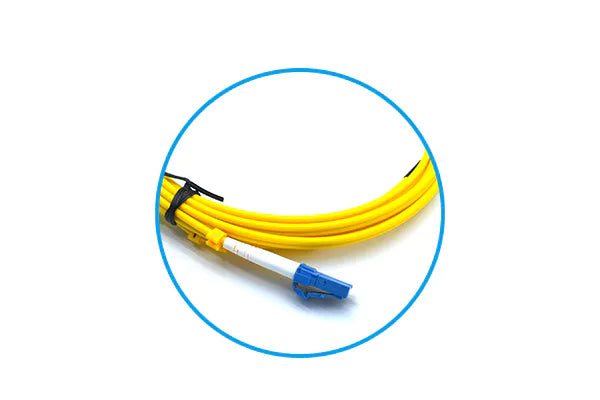

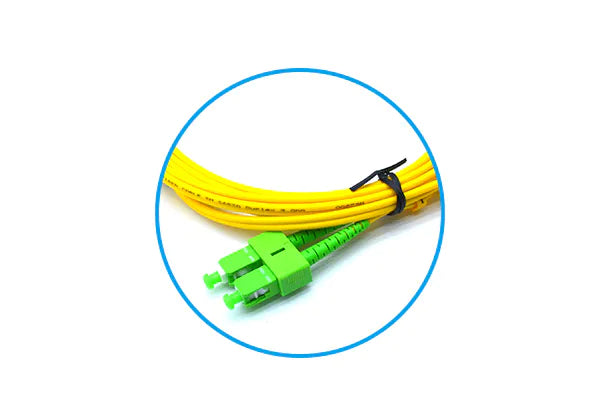

The fiber optic patch cord/jumper cable is made by 0.9mm, 2.0mm, or 3.0mm PVC/LSZH sheath simplex or duplex indoor cable and then is completed with SC. ST. FC or LC connectors.

The fiber optic patch cords/jumpers provide a stable and reliable connection between both SM or MM and single or dual fiber.

Different polishing methods: PC, UPC, and APC are optional.

Product information

Mode Single Mode Multimode
Insertion Loss Typlical ≤ 0.25dB  Maximum ≤0.3dB ≤ 0.25dB
Return Loss ≥ 50dB ≥ 65dB ≥ 35dB
Interchangeability ≤ 0.2dB
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature ≤ 0.2dB (-40+85 sustain 100 hours)
Humidity ≤ 0.2dB (+25+65 93 R.H.100 hours)
  • The best insertion loss and return loss ensure stable signal transmission and network security. Good thermal stability, high hardness, strong environmental adaptability.

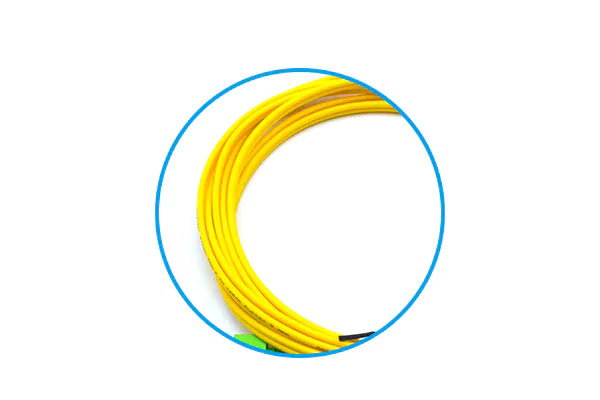

  • In the case of extreme fiber bending, the optical signal leaked to the outside of the core due to bending is retained to reduce fiber loss and print clearly.

Technical Parameters

1. connector types: FC, SC, LC, STand etc

2. The min bending radius: 3.8 cm

3. Operating temperature range: - 40 ~ 85 °C

4.connector materials: ceramic plug core

5. Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm

6. Repeat plug: < 0.25 dB, each 500 times plug

7. Min reflection loss: 20 db

8. Max return loss:-50dB

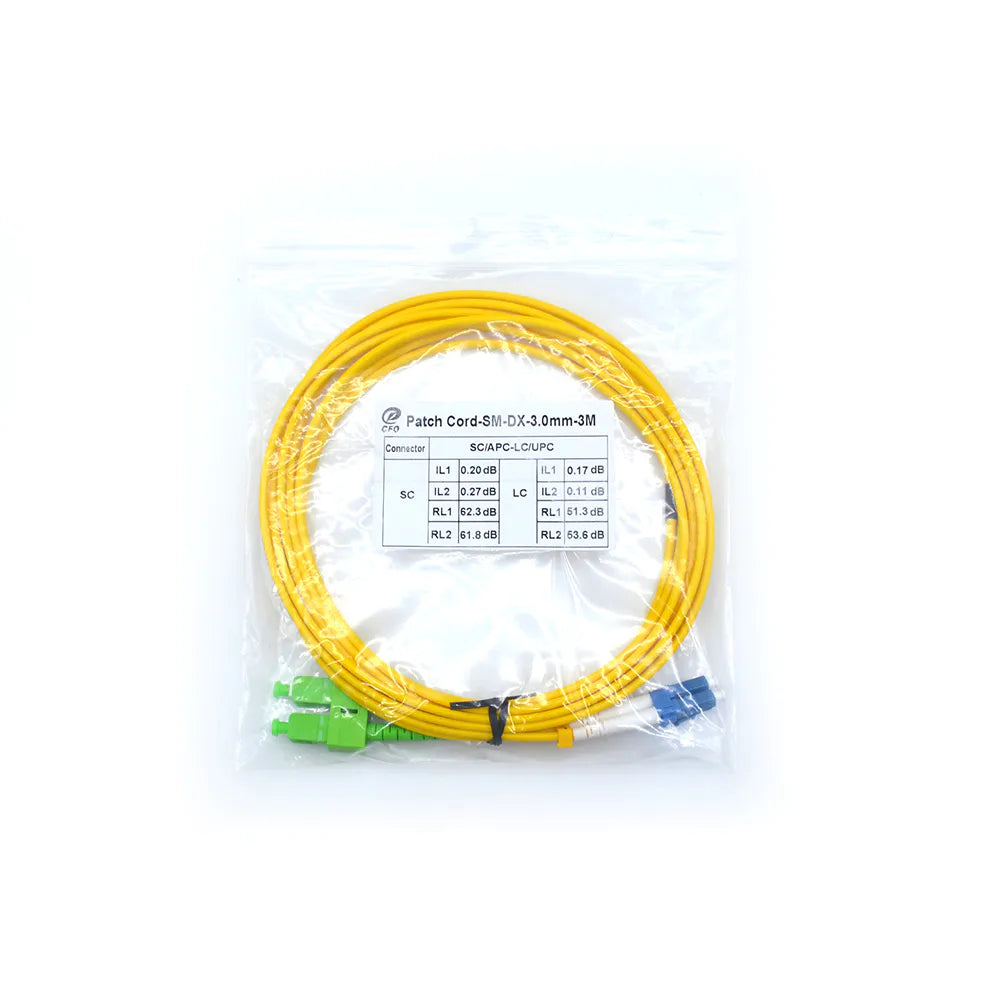

  • Tie the line into the PE bag, the connector head position down, product labels affixed to the middle of the PE bag. The long side of the label is parallel to the bottom edge of the PE bag, finally put it into the carton.

For more information, please contact us


Tel: (+49) 8938 9992 58
