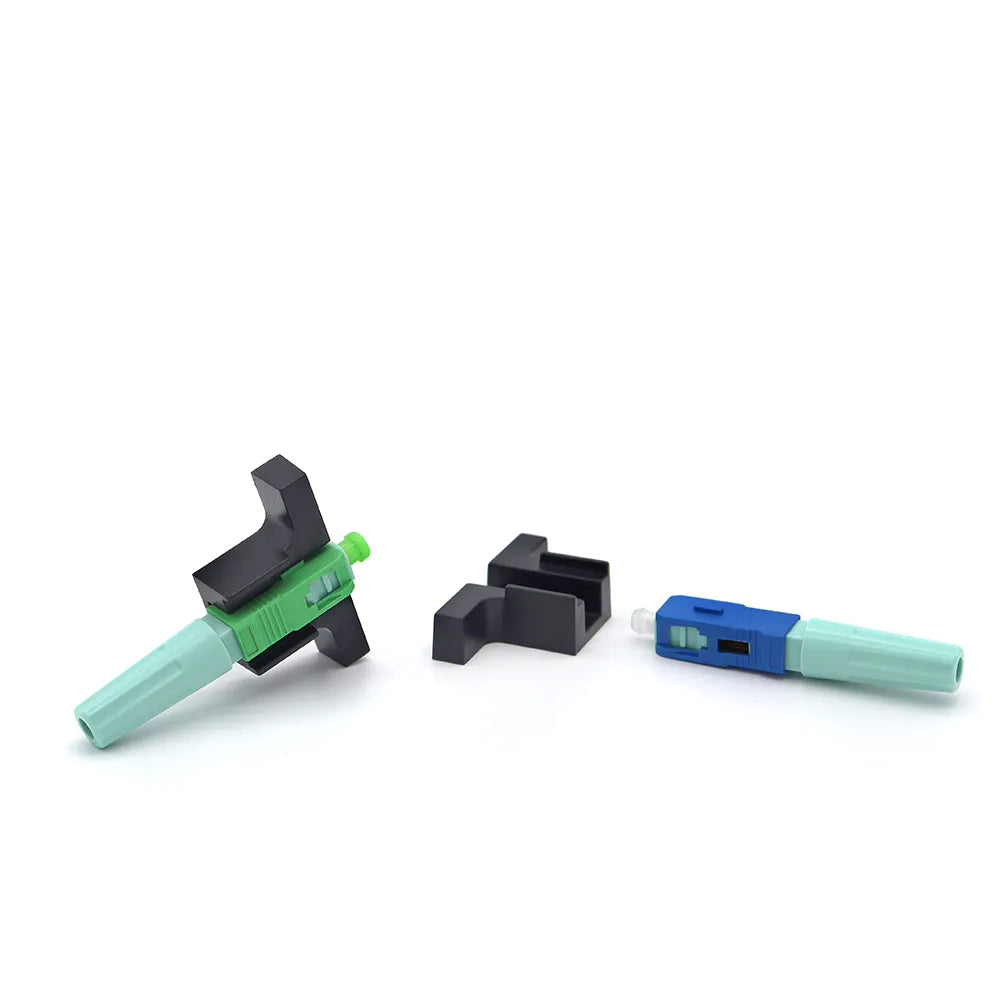

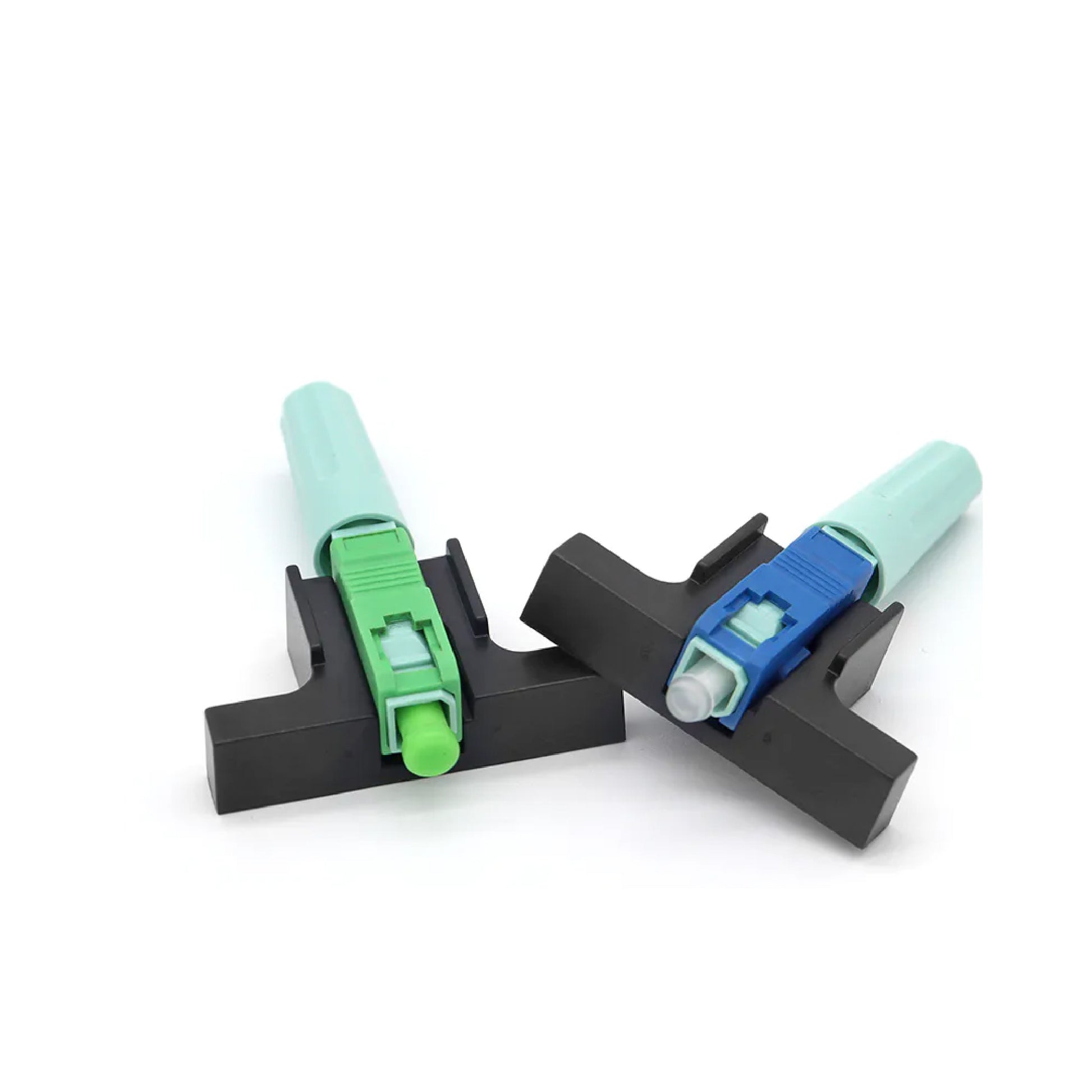

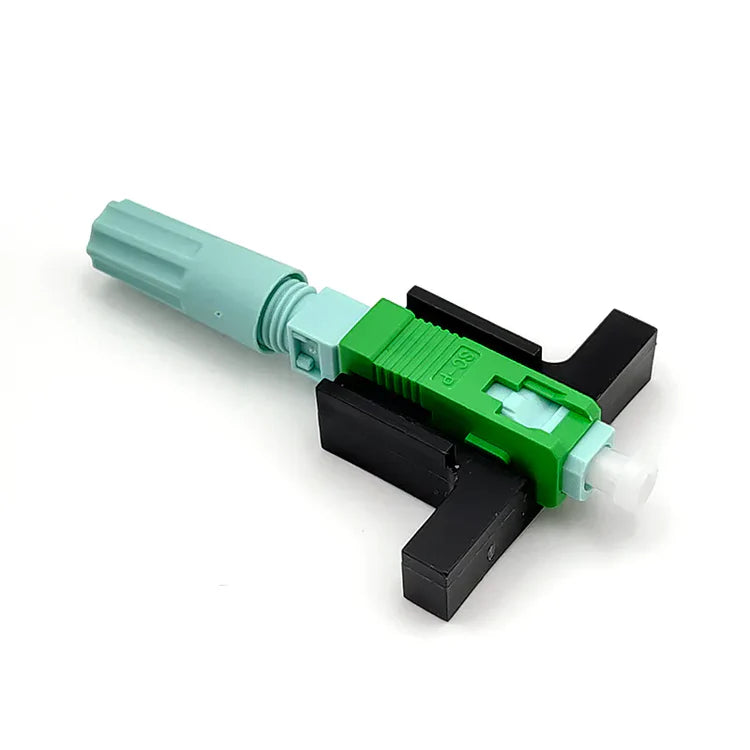

Spiral Types SC/APC Fiber Optic Fast Connector

Spiral Types SC/APC Fiber Optic Fast Connector

Model: 5504G

MOQ: >500

Material: PVC

Brand: HRI

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day

View full details

Product Description

HRI Field Assembly Optical Connector is designed for fast and simple field termination of a single fiber, without polishing or epoxy. The Connector is made with precision and high-quality Zirconia ferrules and provides a highly reliable connection in most network applications. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm, and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.

Product information

Type Mode HRI-5504G Applicable for 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)125μm(657A & 657B ) Tight buffer diameter 250μm
Fiber mode  Single-mode Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm) Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N Fastening strength of naked fiber holder >10 N
>50 N Using temperature -40~+75°C
 IL ≤ 0.5dB  RL ≤ 5dB Mechanical durability (500 times)  IL ≤ 0.5dB  RL ≤ 5dB
Drop-off test
(drop-off height 4m,
once per direction,
totally 3 times)		  IL ≤ 0.

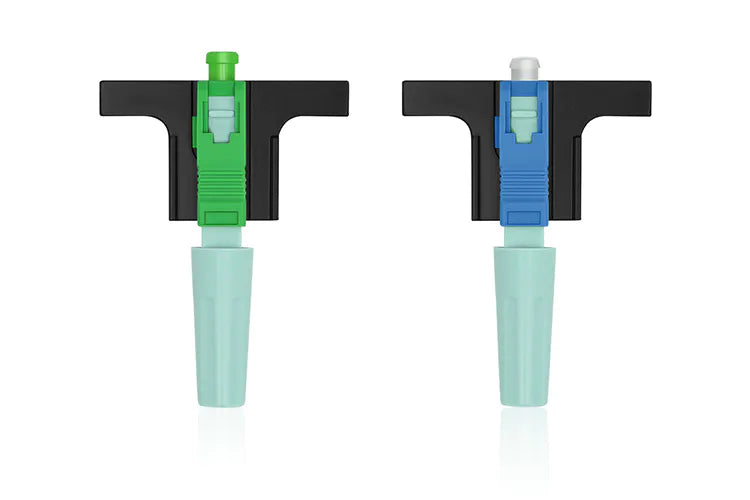

Model

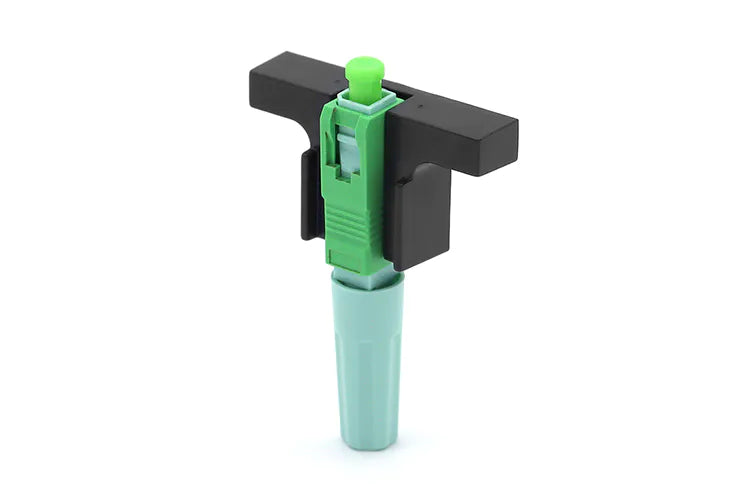

  • SC/APC-L5504G

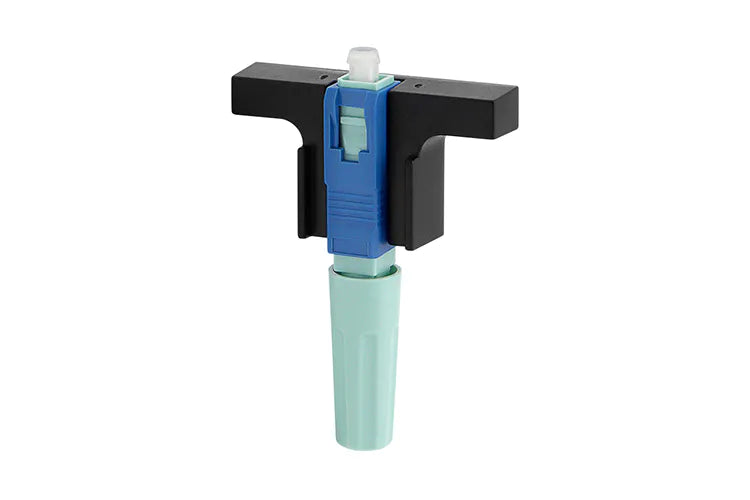

  • SC/UPC-L5504G

Product Features

1. Comply with TIA/EIA and IEC.

2. Quick and easy fiber termination.

3. Rohs compliant

4. Reusable termination capability( up to 5 times)

5. Easy to deploy fiber solution.

6. High success rate of connections.

7. Low insertion %back reflection.

8. No special tools required.

Applicable Scope

1. All-fiber interconnection

2. Telecom distribution and local area networks

3.  Ftth and FTTx

4. Passive optical networks(ATM, WDM, Ethernet)

5. Broadband, Cable TV(CATV)

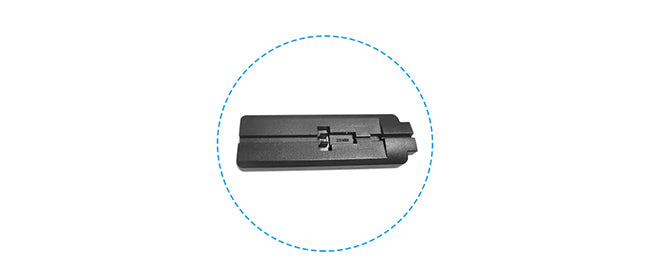

Fiber Cutting Length

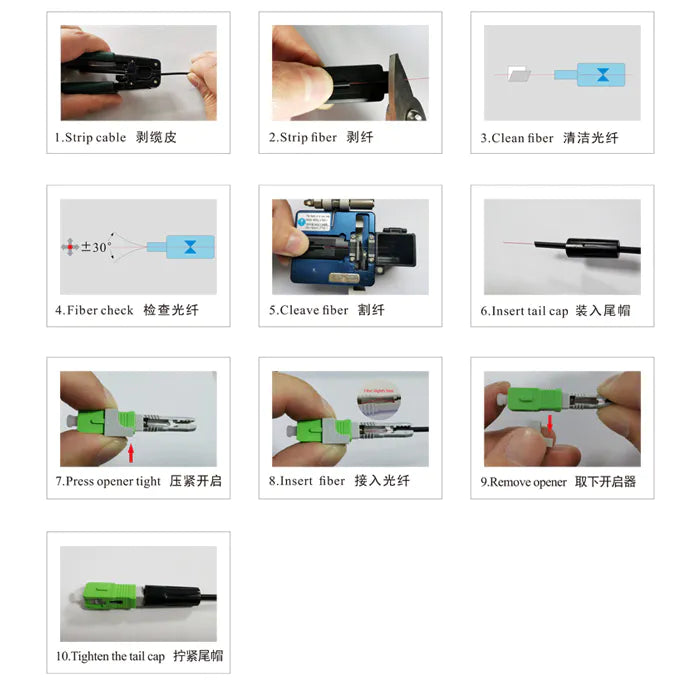

Field Installation Connector Operation Manual SC/UPC(APC)

  • This product is suitable for 3x2/Φ2/Φ3mm Rubber-insulated fiber optic drop cable
