HRI Connect GmbH

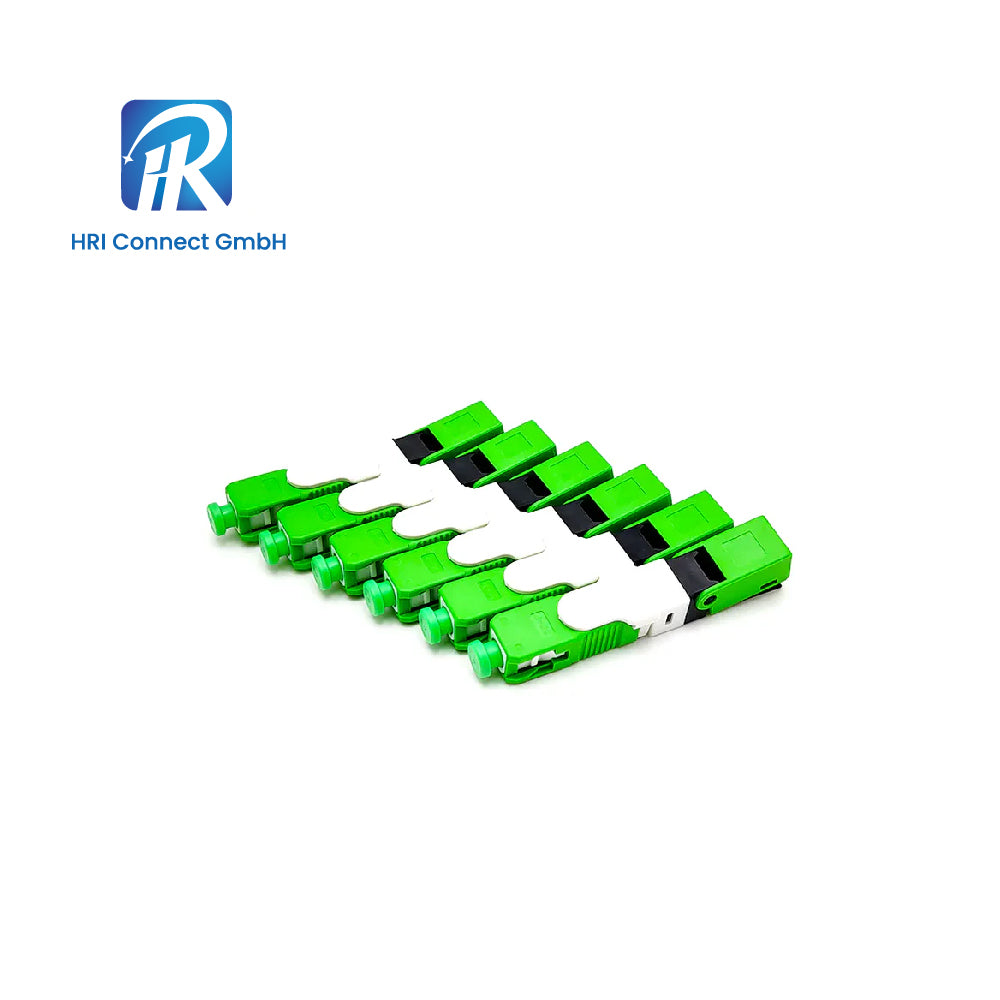

SCAPC and SCUPC Single-Mode, FTTHSM Optic Fast Connector

SCAPC and SCUPC Single-Mode, FTTHSM Optic Fast Connector

Model: 5204

MOQ: >500

Material: ABS

Brand: HRI

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day

View full details

Product Description

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Product information

Applicable for Drop cable, indoor cable Tension 20N( +-0.2dB)
Fiber mode Single mode or Multi mode Reusable Time ≥ 10 times
Operation time About 50 seconds (not including fiber cut time) Operating Temperature -40~+85℃

Insertion Loss

≤.5dB Fastening strength of naked fiber ≥5N
Insertion Loss Typical Value 0.3dB Certificate Anatel
Return Loss ≥50dB

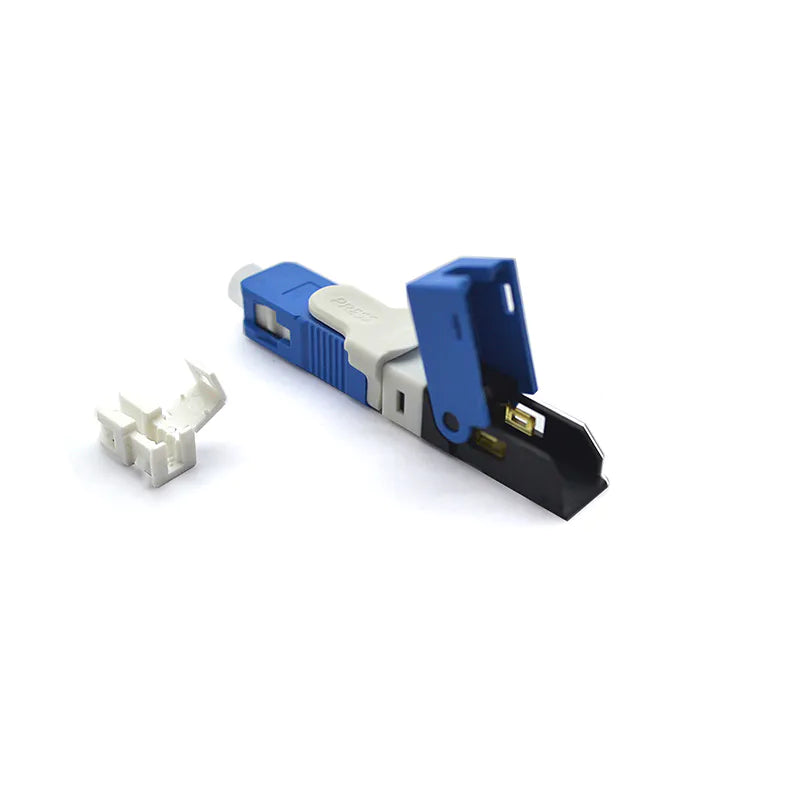

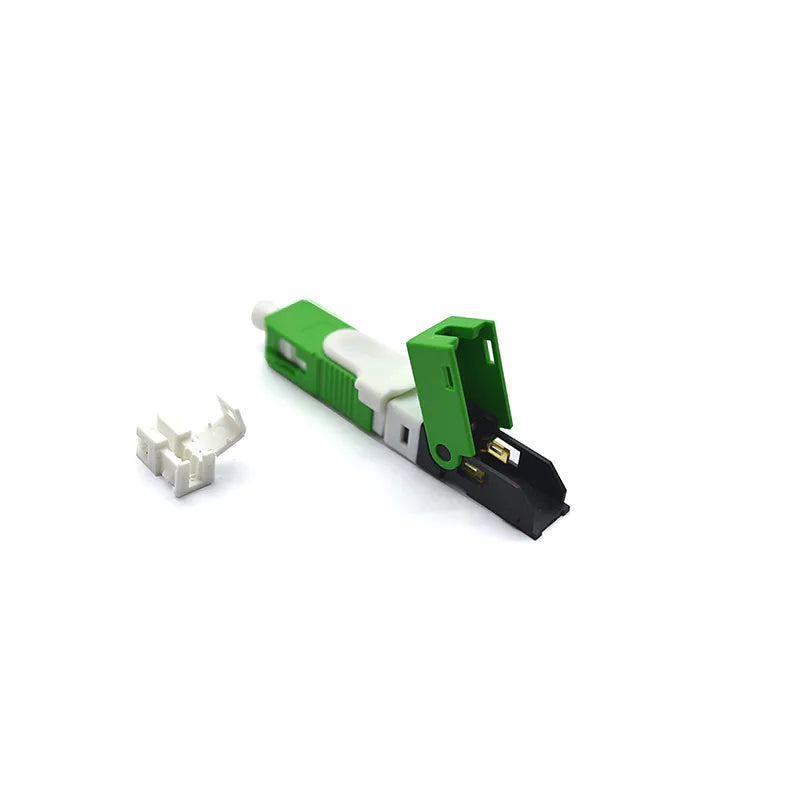

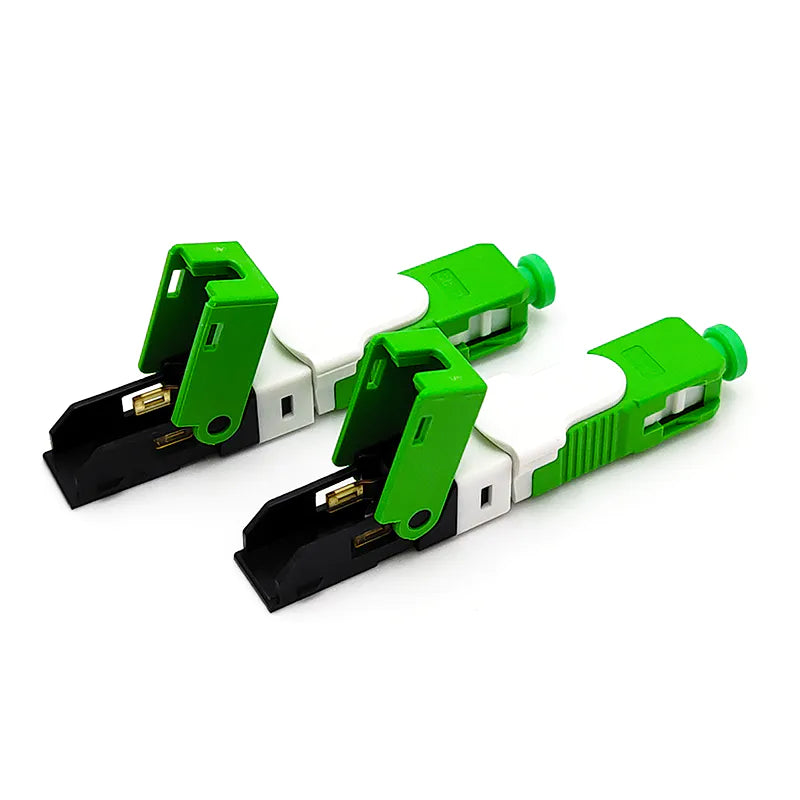

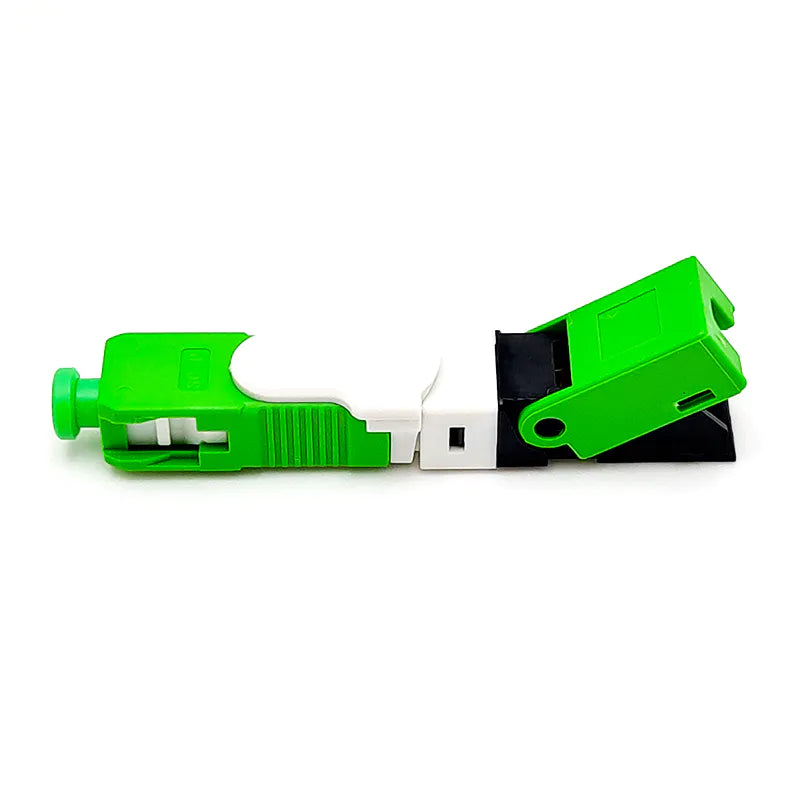

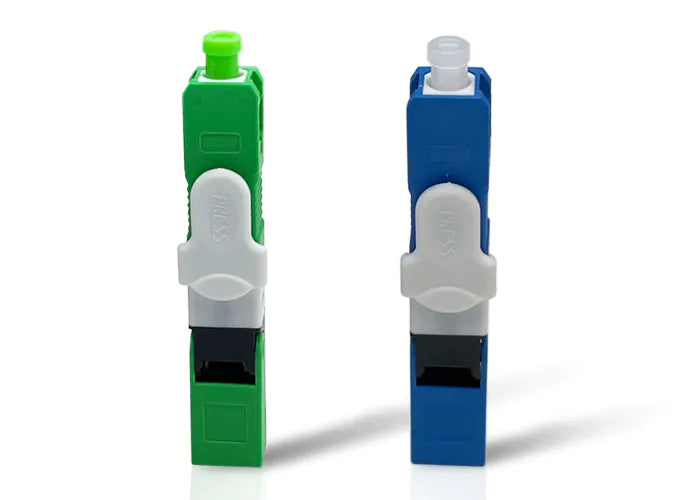

  • SC/APC-L5204

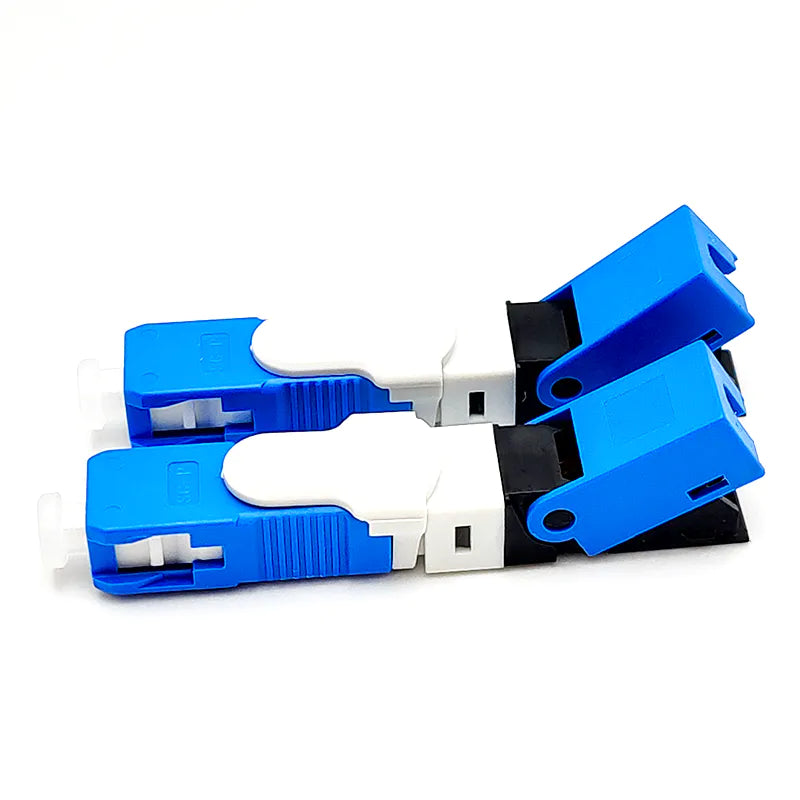

  • SC/UPC-L5204

Product Features

1. Low insertion loss
2. Ease of installation
3. Low cost & Reliability
4. Ease of use
5. Low environmental sensitivity
6. High return loss (low amounts of reflection at the interface)

Applicable Scope

1. CATV & FTTH
2. Telecommunication networks
3. Local area networks (LAN)
4. Wide area networks (WAN)
5. Premise installations
6. Data processing networks
7. Video and military active device termination
8. Optical Distribution Frame
9. Optical Network Equipments
