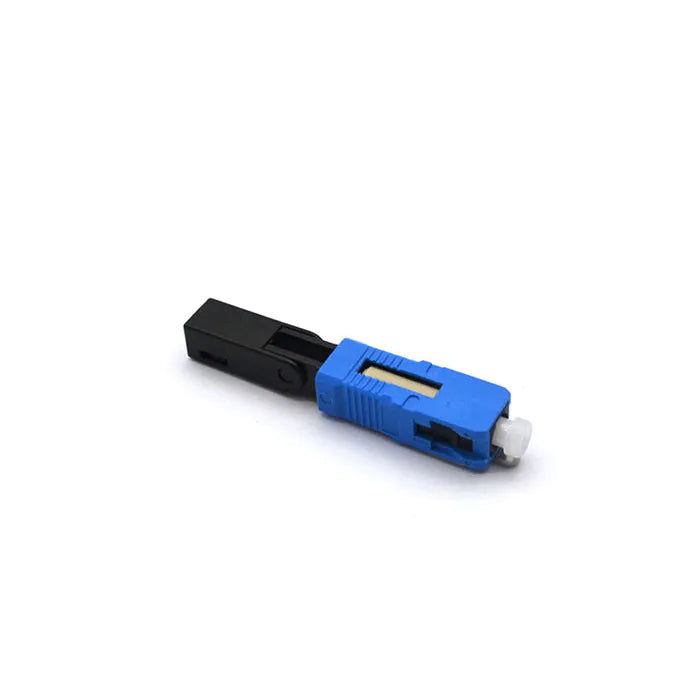

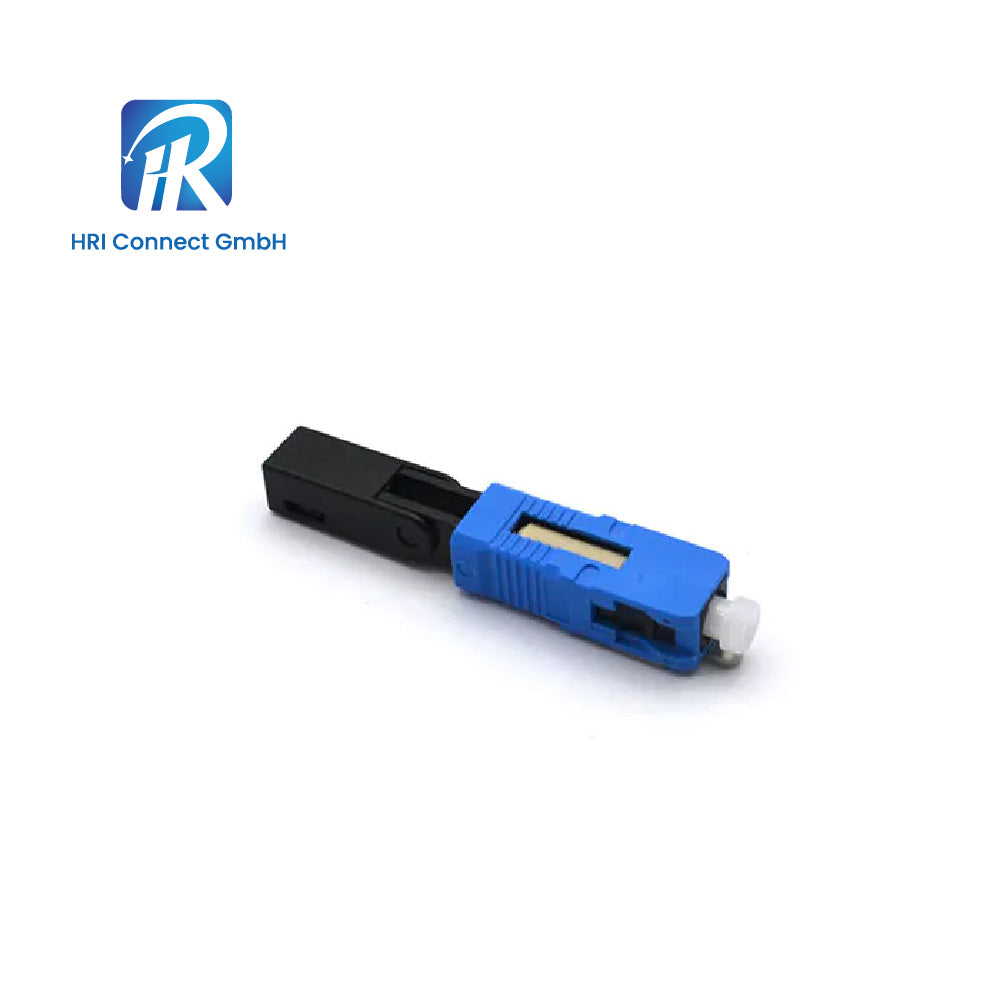

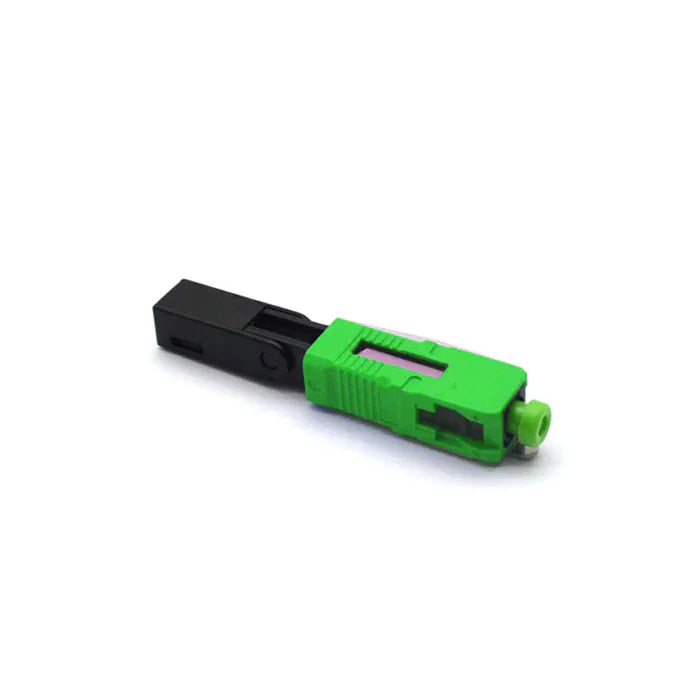

Optic Fast Connector:SC-UPC-5002

Optic Fast Connector:SC-UPC-5002

MOQ: >500

Brand: HRI

Delivery Time: within 7 days after full payment

Start Port: Shenzhen

View full details

Product Description

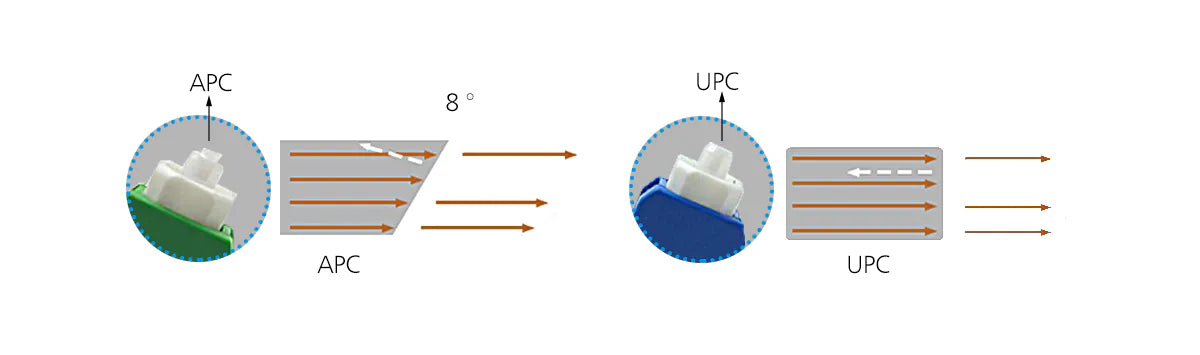

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Product information

Applicable for

Drop cable,indoor cable

Tensile strength

≥50N

Fiber Mode

Single mode or Multi mode Reusable Time ≥ 10 times
Operation Time About 50 seconds (not including fiber cut time) Operating Temperature -40~+85℃
Insert Loss ≤.5dB On-line Tensile Strength(20N) △IL≤.3dB
Insertion Loss Typical Value 0.3dB Mechanical Durability(500 times) △IL≤.3dB
Return Loss ≥50dB Drop-off test (drop off height 4m,once per direction,totally 3 times) △IL≤.3dB
Fastening Strength of Naked Fiber ≥5N

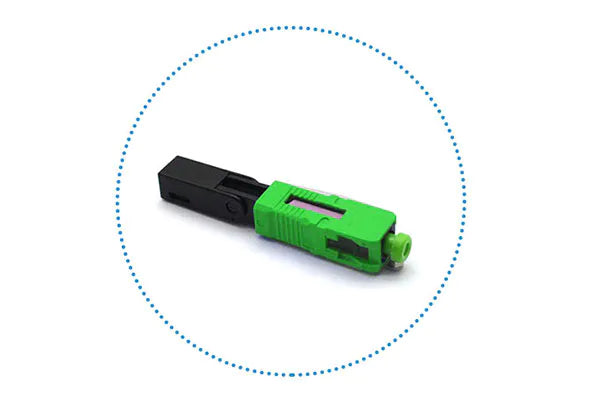

  • SC/APC-L5002

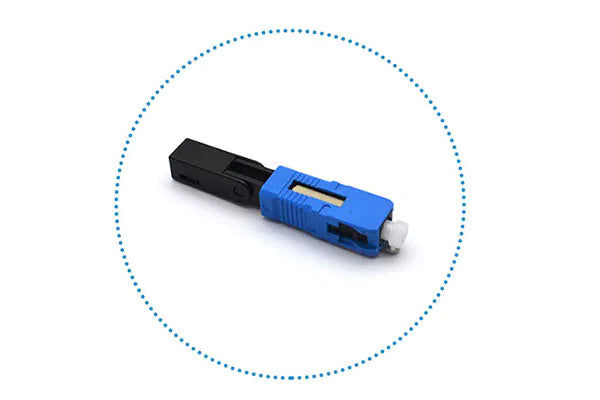

  • SC/UPC-L5002

  • 1. Apply for FTTH optical fiber

    2. Easy installation and connection

    3. The same function as standardoptical connector

    4. Without redundant cable,easy Management
