Mini 2-24 Cores Air-blowing Micro Optical Fiber Cable

Mini 2-24 Cores Air-blowing Micro Optical Fiber Cable

Model: GCYFXY

MOQ: >500

Brand: CFO

Material: PE

Delivery Time: 7-25days

Start Port: Shenzhen

View full details

Product Description

Air-blown micro cables use air-blown laying methods to connect optical branch points and user access points. The optical cable has good mechanical and temperature properties, high tensile strength guaranteed by fiberglass, good flexibility, easy construction, and low cost.

Product information

Micro cable model GCYFXY--xxF (MTE+outer diameter )
MTE1.8 MTE2.0 MTE2.3 MTE2.5 MTE2.8
Number of fiber cores 2~4 2~4 6~12 2~12 14~24
HDPE outer sheath thickness nominal: 0.20mm, smallest: 0.15mm
Nominal outer diameter 1.8mm 2.0mm 2.3mm 2.5mm 2.8mm
Approximate weight 2.6kg/km 4.0kg/km

5.0kg/km 6.0kg/km 7.0kg/km
Fiber optic cable attenuation (single-mode fiber) 1310nm/1550nm≤0.35/0.22dB/km
Maximum pulling force 40N 40N 50N 60N 60N
Maximum crushing force 600N/100m
Allowed minimum static, dynamic bending radius 10 times/20 times the outer diameter of the optical cable
Applicable temperature range Storage -30~+60℃; Installation -10~+40℃; Operation -20~+50℃
Optical cable life (estimated) 25 years

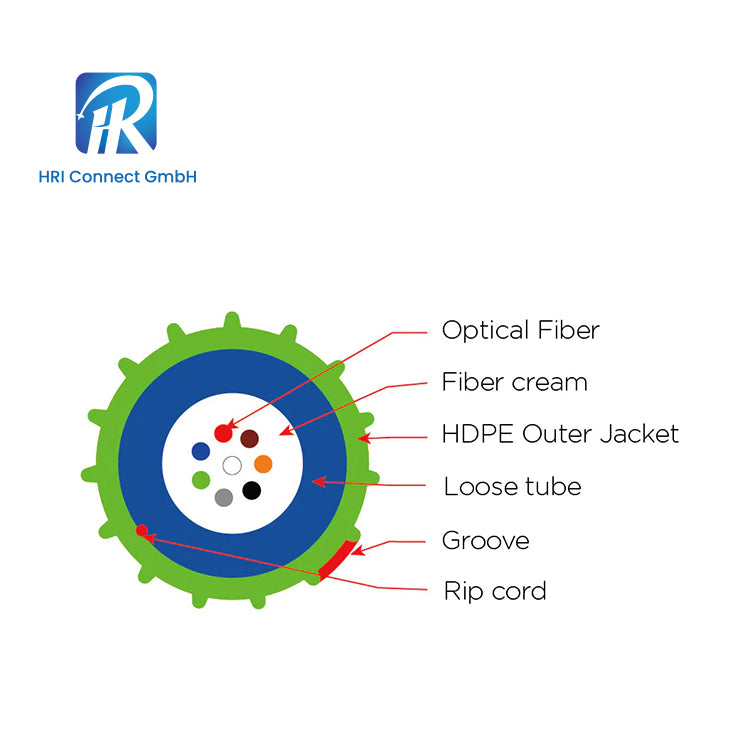

Product Structure

Product Features

  1. Special composite material loose casing to reduce low-temperature casing retraction;
  2. The remaining length of the optical fiber is precisely controlled and the performance of the optical cable is stable;
  3. Unique process control prevents the sheath from wrinkling during air blowing;
  4. High-density polyethylene outer sheath to increase air-blowing distance.

Applicable Scope

  1. Air blowing installation
  2. Core network
  3. Metropolitan Area Network (MAN)
  4. Access network
  5. Backbone network
  6. Local Area Network (LAN)
  7. FTTx network8. Data center
  8. 5G

Air Blowing Performance

Test Equipment Pipe models suitable for air delivery and corresponding typical air delivery lengths
Polyment:PRM-196,
PR140, etc. Air Pressure: 13bar
Number of fiber cores Microtube model 3.5/5.0mm Microtube model 5.5/7.0mm
2~12 cores 800m 1500m
14~24 cores 500m 1500m
