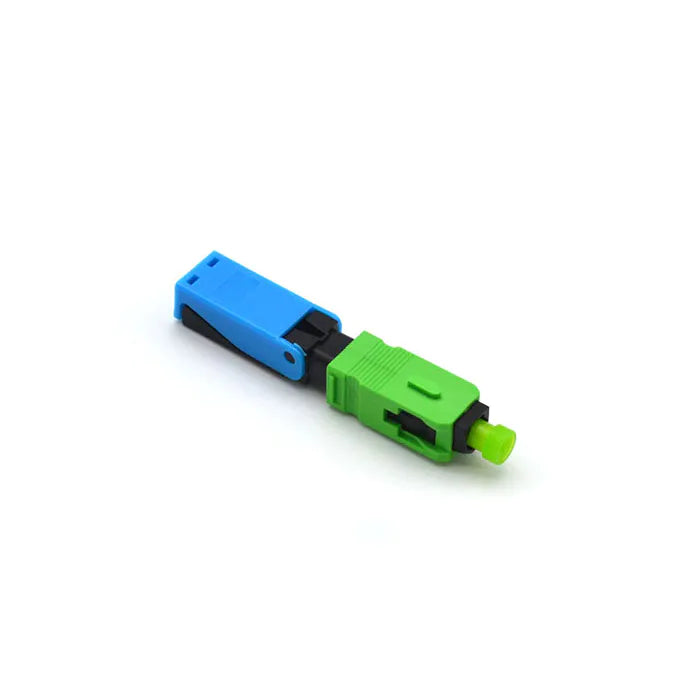

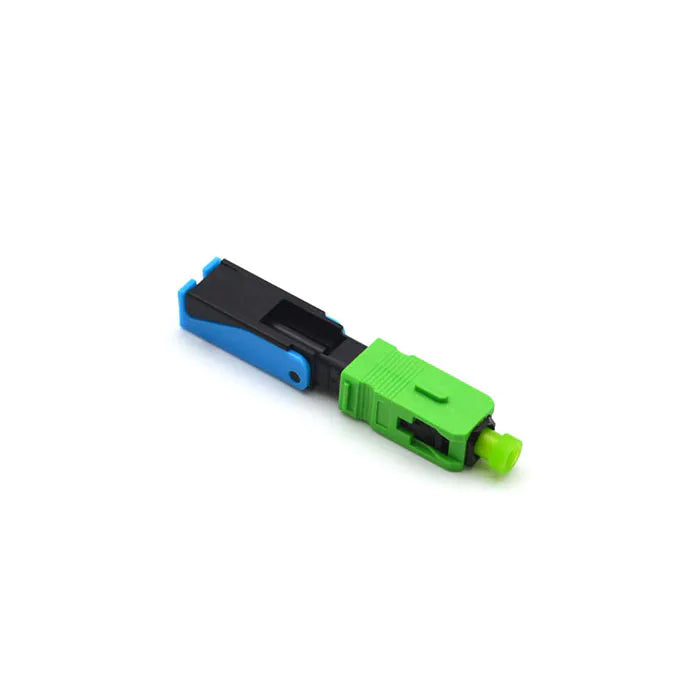

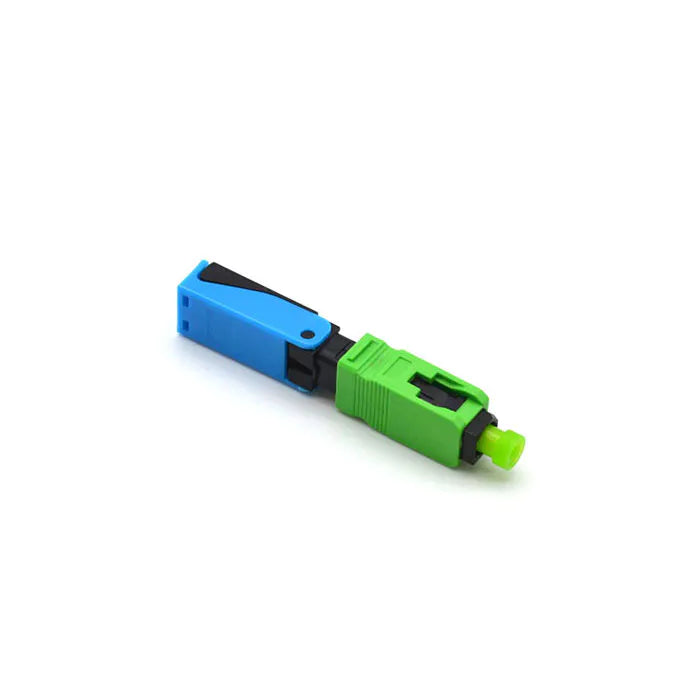

Green Fiber Optic Fast Connector 52mm Fiber Optic SC Connector For 2 x 3mm Drop Cables

Green Fiber Optic Fast Connector 52mm Fiber Optic SC Connector For 2 x 3mm Drop Cables

Model: L5201

MOQ: >500

Material: ABS

Brand: HRI

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day



View full details

Product Description

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.


Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes, and a fiber cleaver. No electrical power supply is needed.

Our Fast Connector series connectors are now available in FC, SC, and LC variants, catering for 250um to 900um diameter single-mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Product information

Type Mode SC/APC(UPC) Connector Applicable for 2 X3mm Drop Cable
Durability(1000 Mating) 0.2dB Max Connector Length 52mm
Fiber mode  Single-mode Operation time About 100s(no fiber cut)
Insert loss Max<=0.5dB, Average<=0.3dB Return loss APC >= 50dB,UPC >=45dB
Fastening strength of naked fiber >5 N Fastening strength of naked fiber holder >10 N
Operating Temperature -40°C~+75°C Storage Temperature -40°C~+85°C

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um

Model

  • SC/APC-L5201

  • SC/UPC-L5201

Product Features

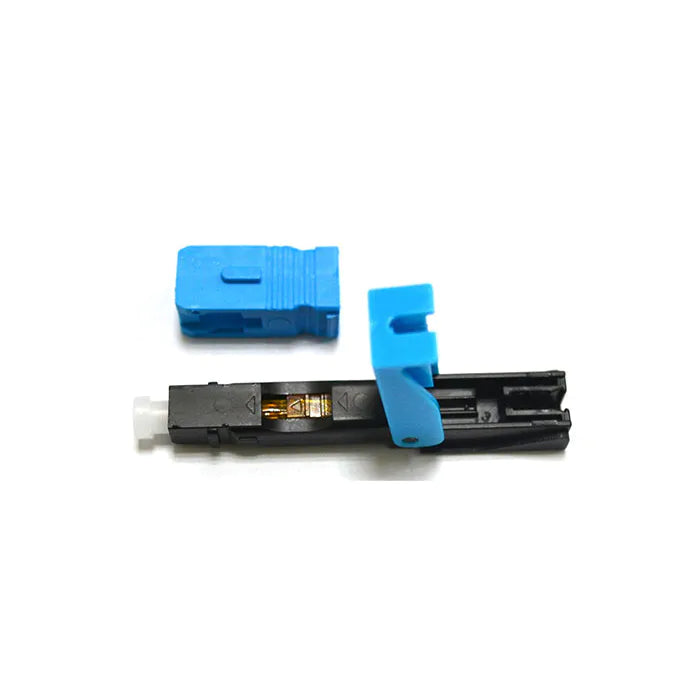

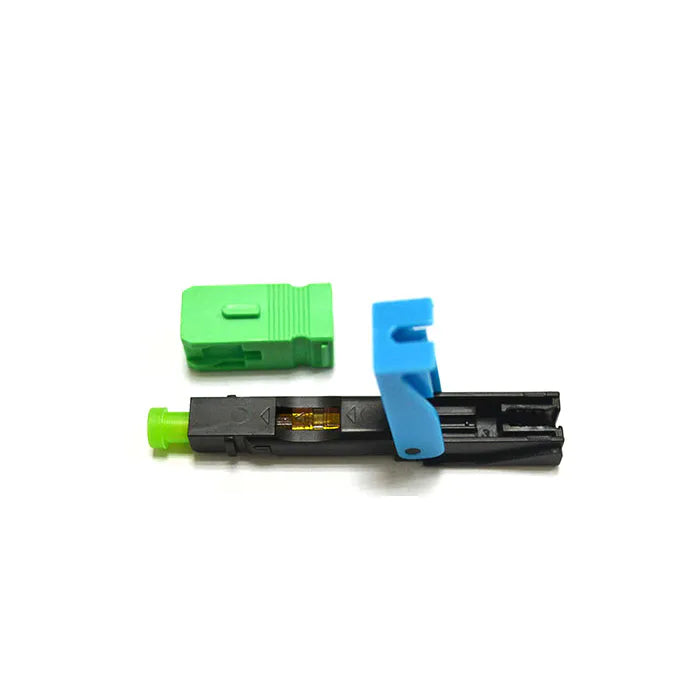

This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.

Connector Type: SC

Fiber Application: Singlemode, Multimode

Fiber Type: Simplex

Number of Fibers: 1

Maximum Cable Diameter (mm):2X3mm

Connector Ferrule: Ceramic
