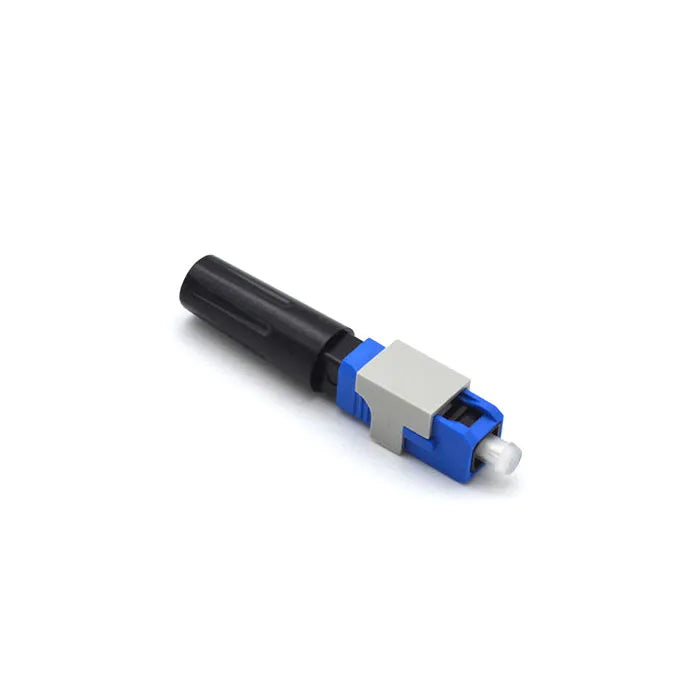

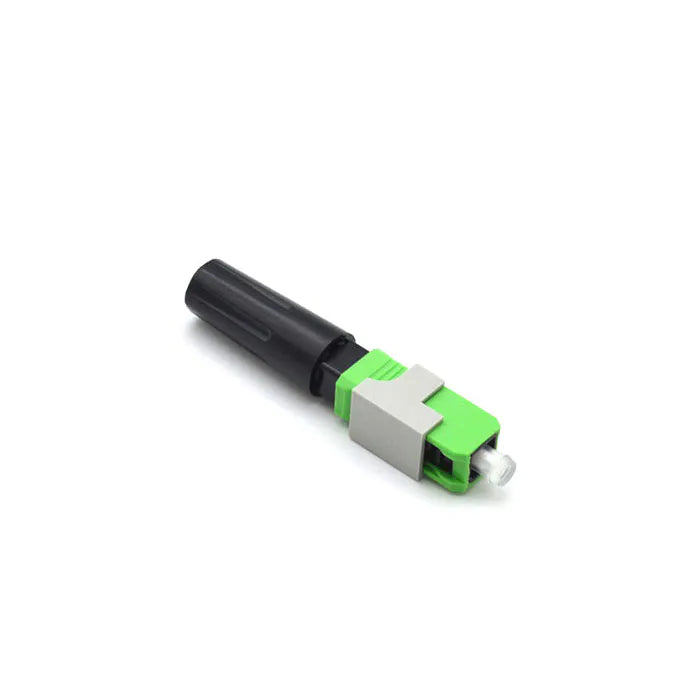

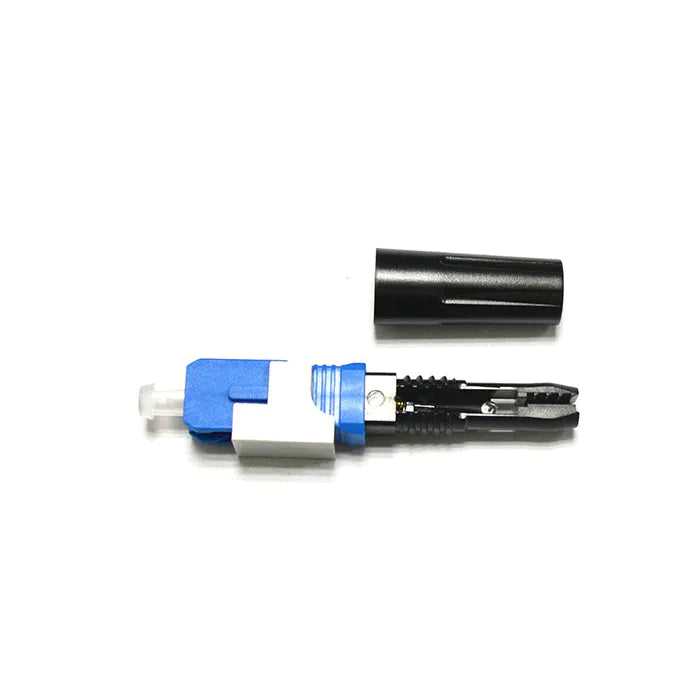

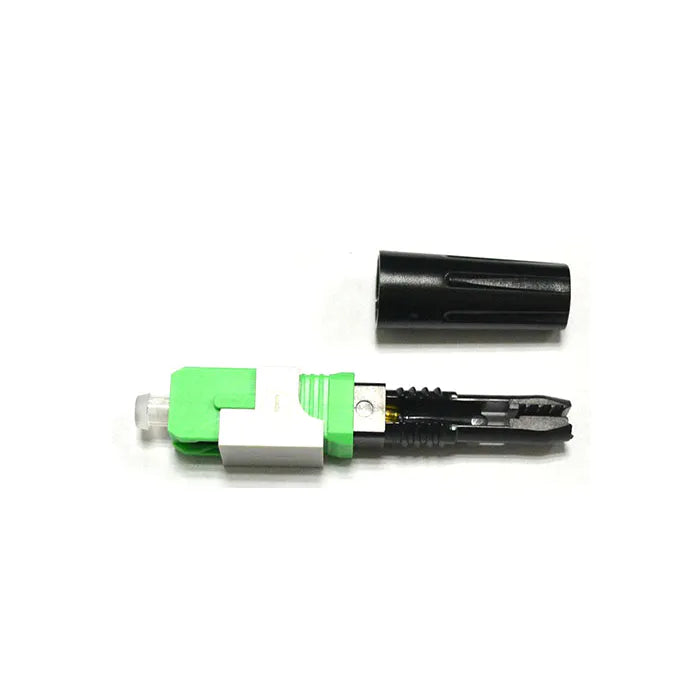

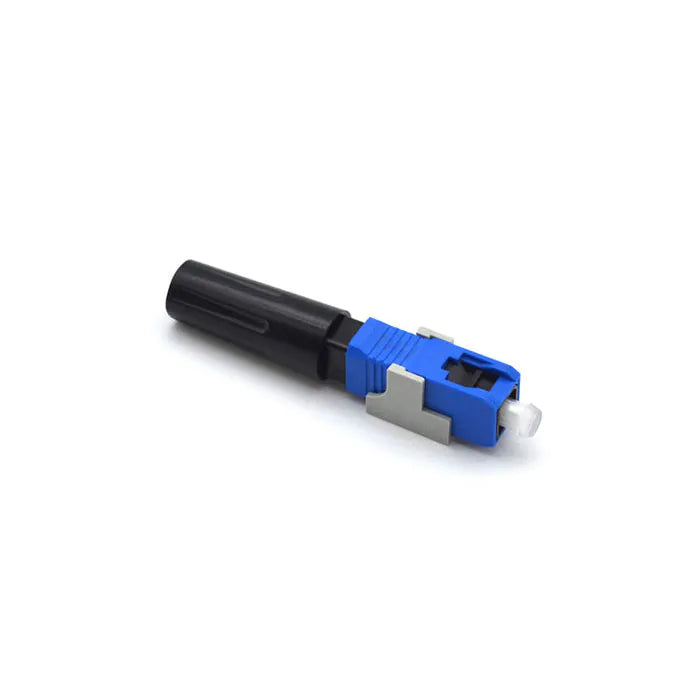

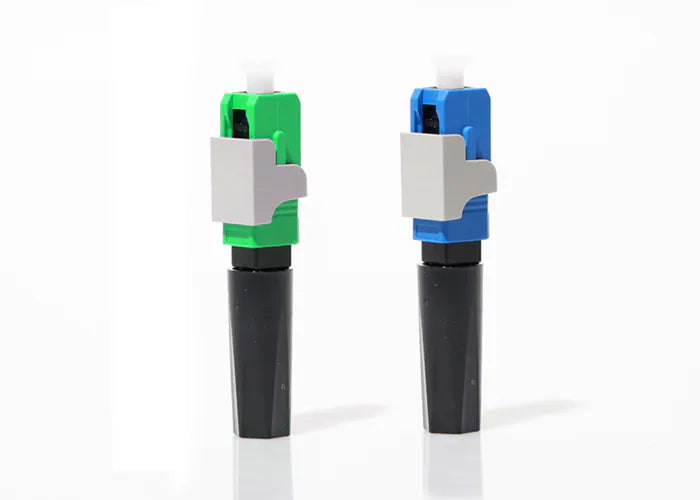

FTTH SC UPC SC APC Fiber Optical Fast Connector - L5504 - Quick Field assembly

FTTH SC UPC SC APC Fiber Optical Fast Connector - L5504 - Quick Field assembly

Model: L5504

MOQ: >500

Brand: HRI

Material: ABS

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day

View full details

Product Description

Carefiber Field Assembly Optical Connector is designed for fast and simple field termination of a single fiber, without polishing or epoxy. The Connector is made with precision and high-quality Zirconia ferrules and provides a highly reliable connection in most network applications. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm, and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.

Product information

Type Mode SC/APC(UPC) Connector Applicable for

0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)125μm ( 657A & 657B ) Tight buffer diameter 250μm
Fiber mode  Single-mode Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm) Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N Fastening strength of naked fiber holder >10 N
>50 N Using temperature -40~+75°C
 IL ≤ 0.5dB  RL ≤ 5dB Mechanical durability (500 times)  IL ≤ 0.5dB  RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)  IL ≤ 0.

Product Features

1. Comply with TIA/EIA and IEC.

2. Quick and easy fiber termination.

3. Rohs compliant

4. Reusable termination capability( up to 5 times)

5. Easy to deploy fiber solution.

6. High success rate of connections.

7. Low insertion %back reflection.

8. No special tools required.

Applicable Scope

1. All-fiber interconnection

2. Telecom distribution and local area networks

3.  Ftth and FTTx

4. Passive optical networks(ATM, WDM, Ethernet)

5. Broadband, Cable TV(CATV)
