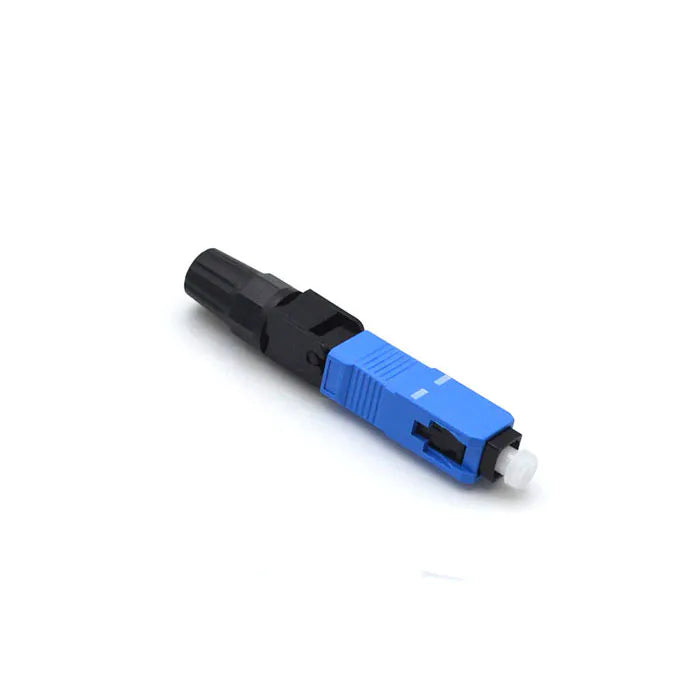

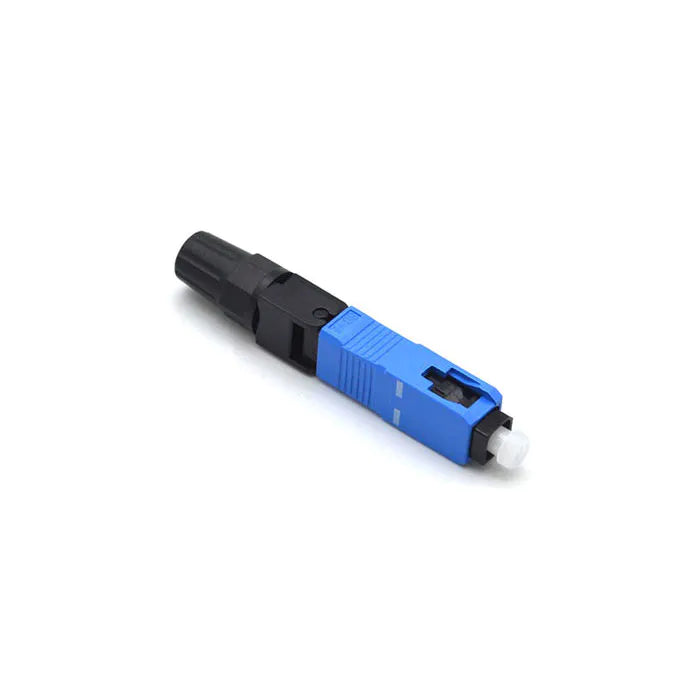

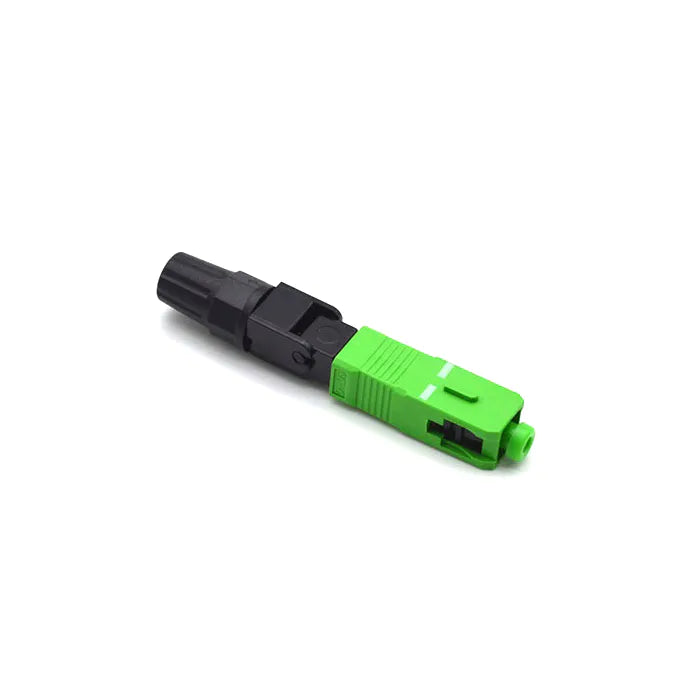

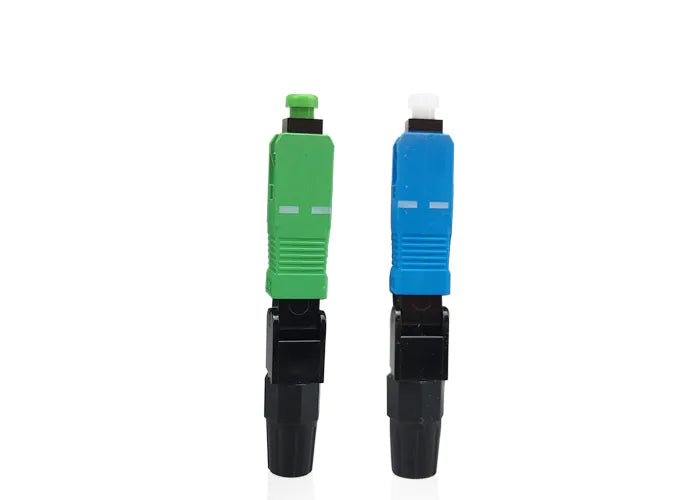

FTTH SC UPC SC APC Fiber Optical Fast Connector - L5502 - Quick Field assembly

FTTH SC UPC SC APC Fiber Optical Fast Connector - L5502 - Quick Field assembly

Model: L5502

MOQ: >500

Brand: HRI

Material: ABS

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day

View full details

Product Description

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector".

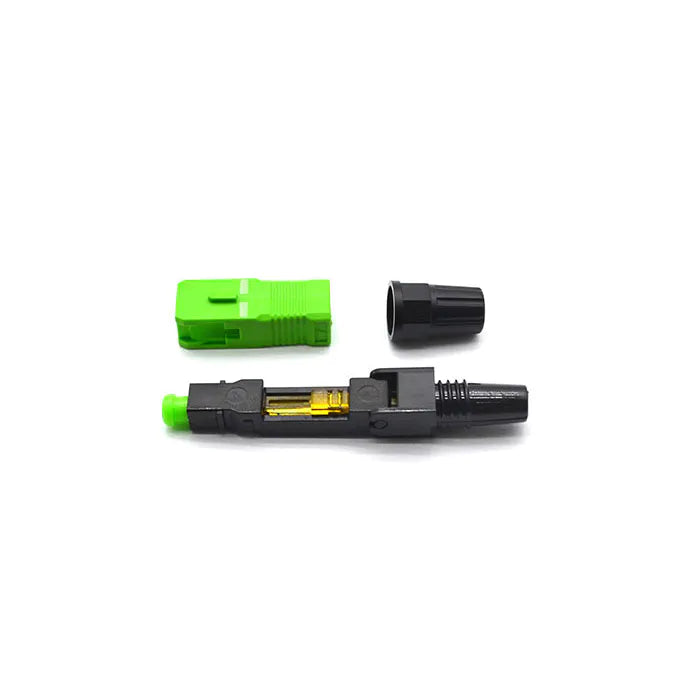

It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.

Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes, and a fiber cleaver. No electrical power supply is needed.

Our Fast Connector series connectors are now available in FC, SC, and LC variants, catering for 250um to 900um diameter single-mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Product information

Type Mode SC/APC(UPC) Connector Applicable for 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)125μm(657A & 657B ) Tight buffer diameter 250μm
Fiber mode  Single-mode Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm) Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N Fastening strength of naked fiber holder >10 N
>50 N Using temperature -40~+75°C
 IL ≤ 0.5dB  RL ≤ 5dB Mechanical durability (500 times)  IL ≤ 0.5dB  RL ≤ 5dB
Drop-off test
 (drop-off height 4m,
once per direction,
totally 3 times)		  IL ≤ 0.

Model

  • CFO-SC-APC-L5502

  • CFO-SC-UPC-L5502

Product Features

1. Comply with TIA/EIA and IEC.

2. Quick and easy fiber termination.

3. Rohs compliant

4. Reusable termination capability( up to 5 times)

5. Easy to deploy fiber solution.

6. High success rate of connections.

7. Low insertion %back reflection.

8. No special tools required.

Applicable Scope

1. All-fiber interconnection

2. Telecom distribution and local area networks

3.  Ftth and FTTx

4. Passive optical networks(ATM, WDM, Ethernet)

5. Broadband, Cable TV(CATV)

Fiber cutting length

Field Installation Connector Operation Manual SC/UPC(APC)
