HRI Connect GmbH

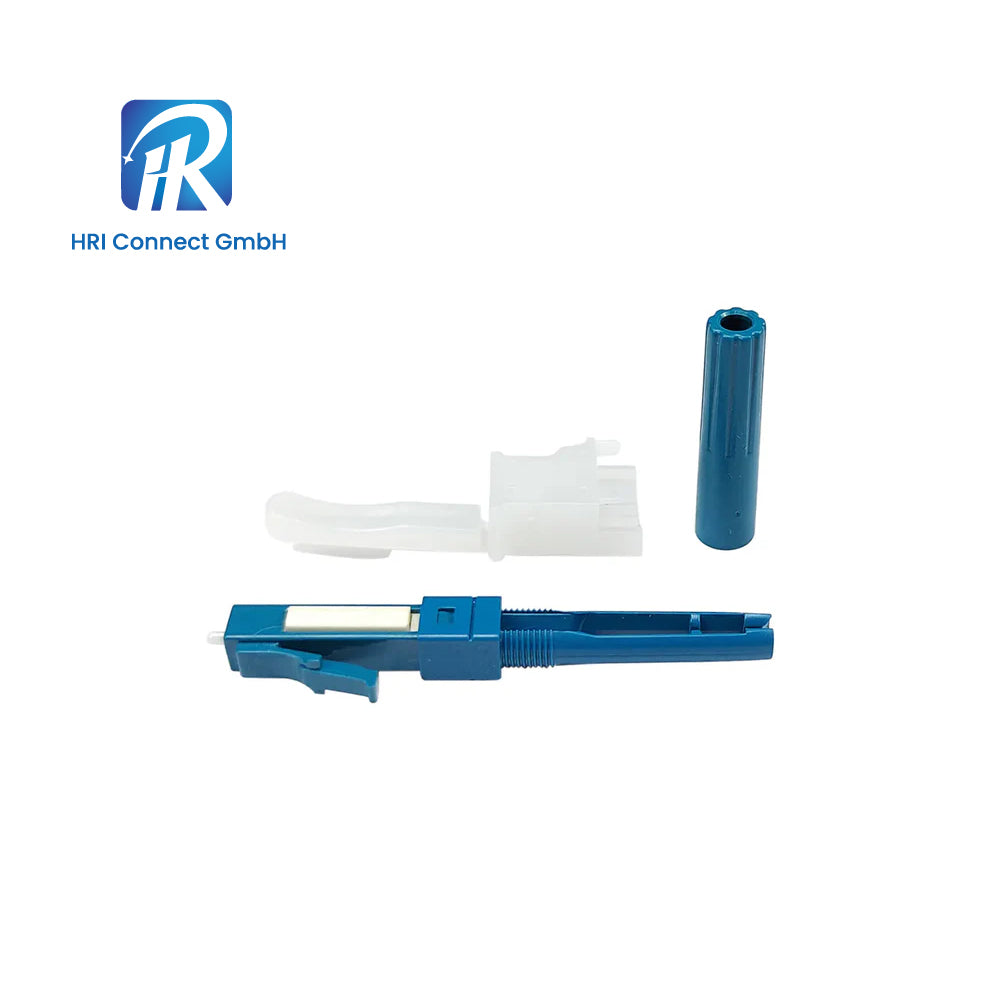

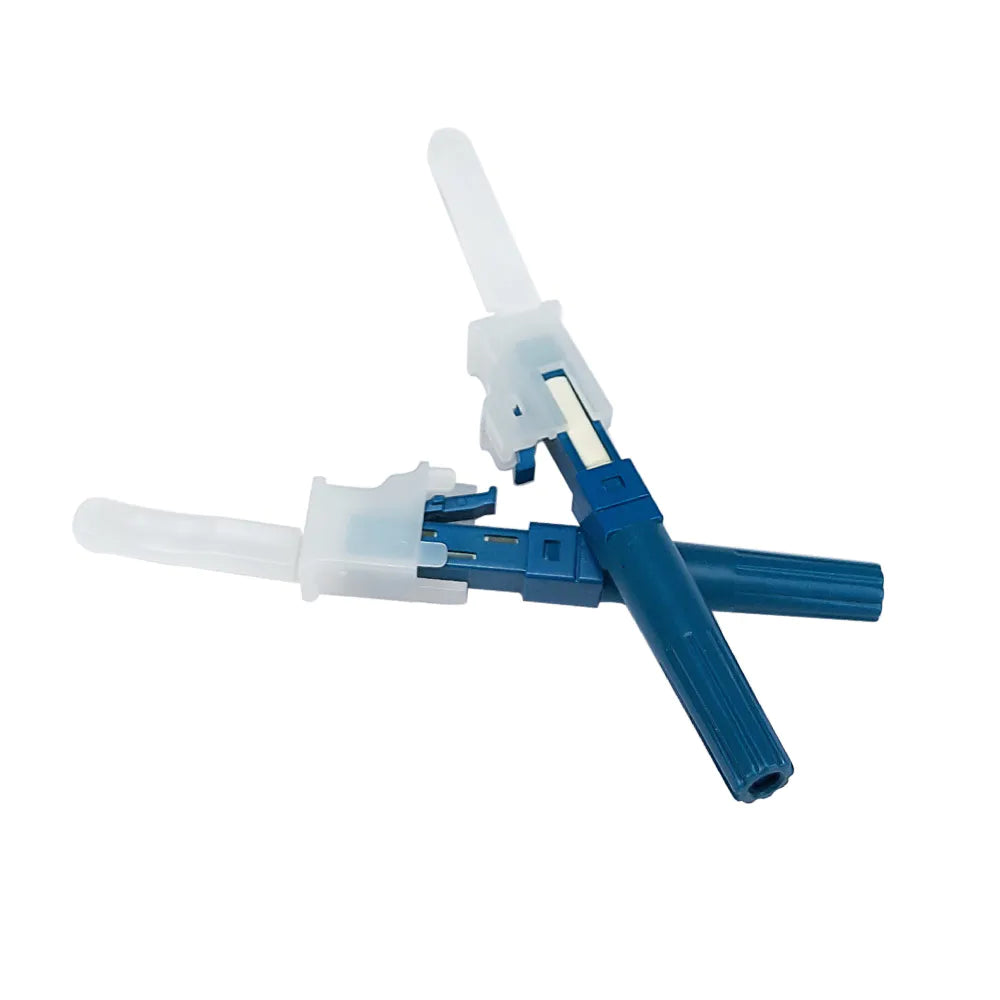

Fast Connector-FC-SC-LC

Fast Connector-FC-SC-LC

Model: LC-L5101

MOQ: >500

Material: ABS

Brand: HRI

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day

View full details

Product Description

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

1. easily installed;

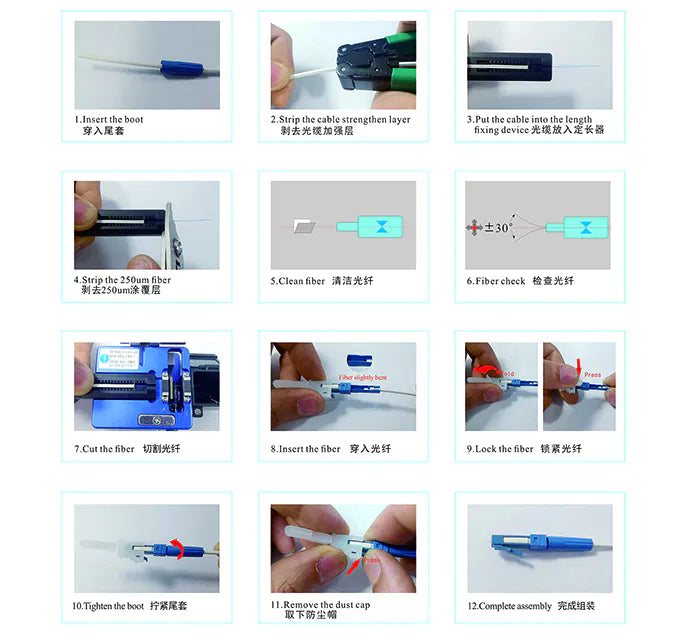

2. made on-site without splicing connectors;

3. fast connecting;

4. insertion loss:  0.3dB(Typical)   0.5dB(Max.)

5. return loss: ≥45dB

Product information

Fiber type Single-mode or Multimode Applicable for Indoor or Outdoor FTTH
Cable diameter ∅0.9mm & ∅1.6mm Diameter of Ceramic core 1.249±0.001mm

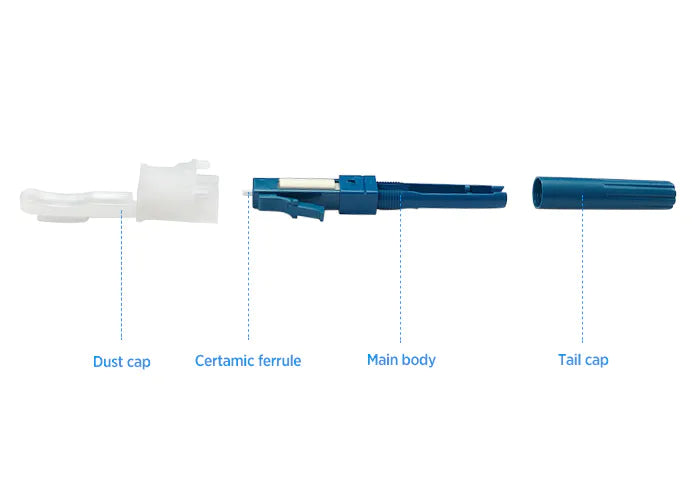

Concentricity of Ceramic core ≤0.5um Material of plastic parts PBT(Main-body);PEI(Inner-core);Dust Cap(PE)

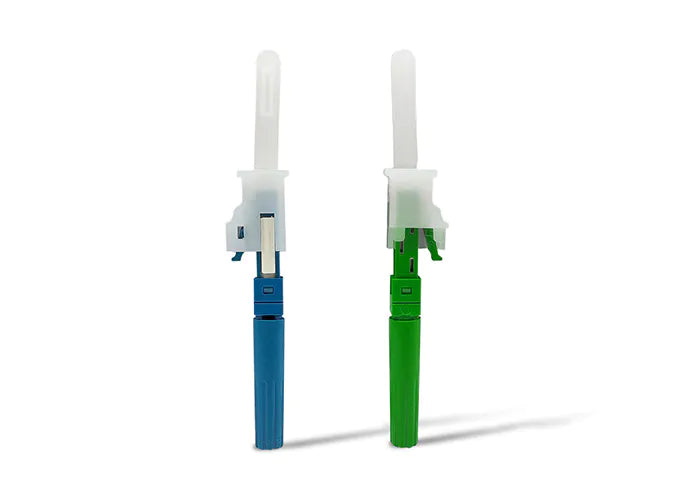

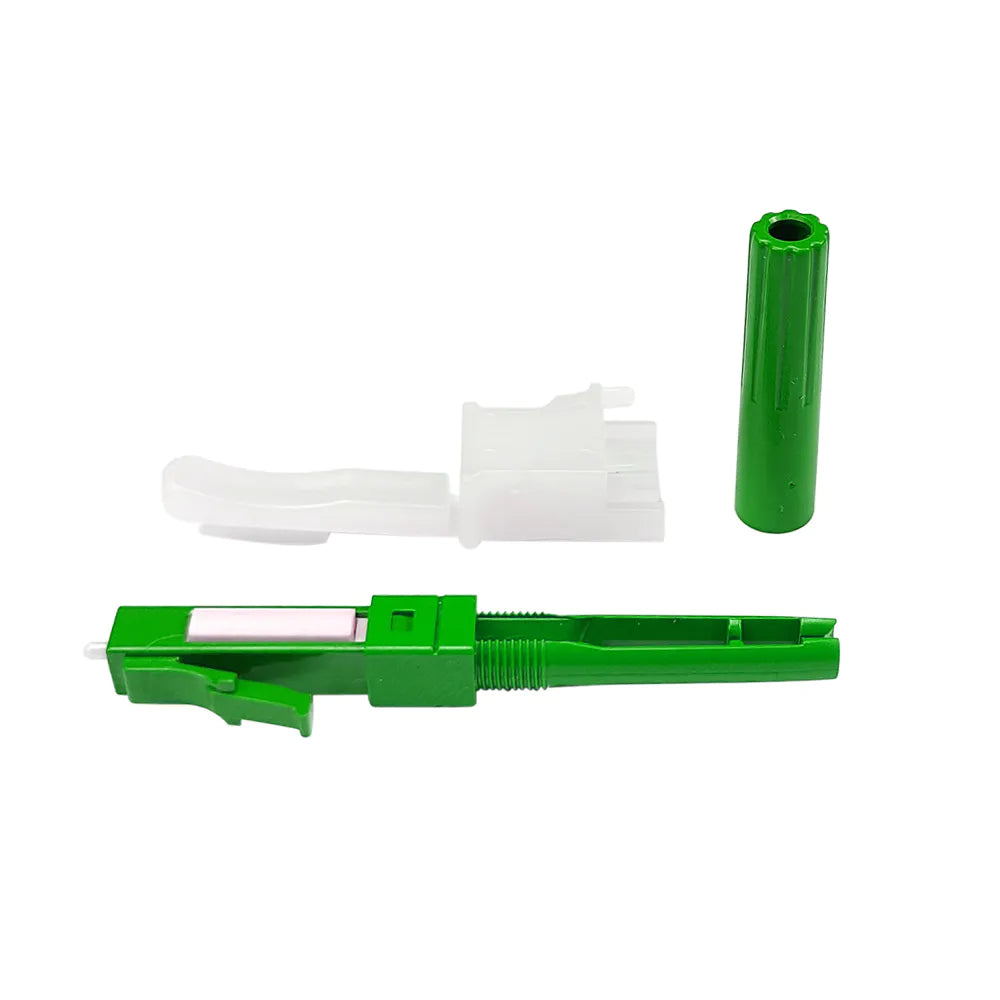

  • LC/APC-L5101

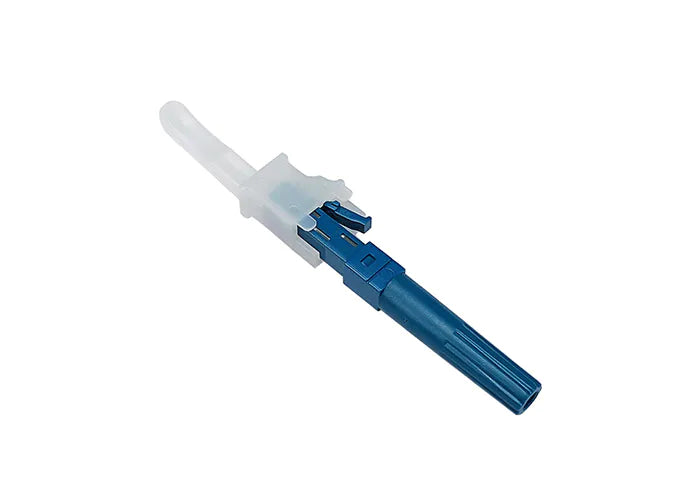

  • LC/UPC-L5101

Product Features

1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE

  • 1.6X2.0mm Optical Cable
