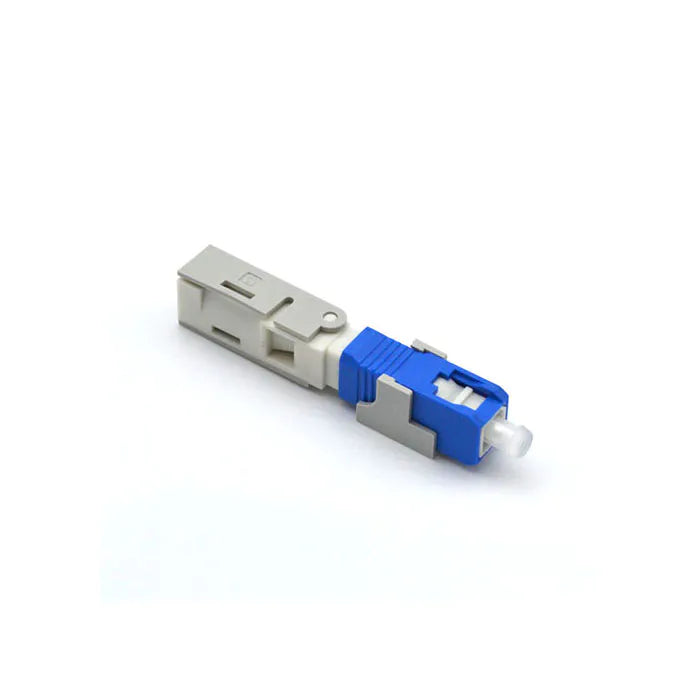

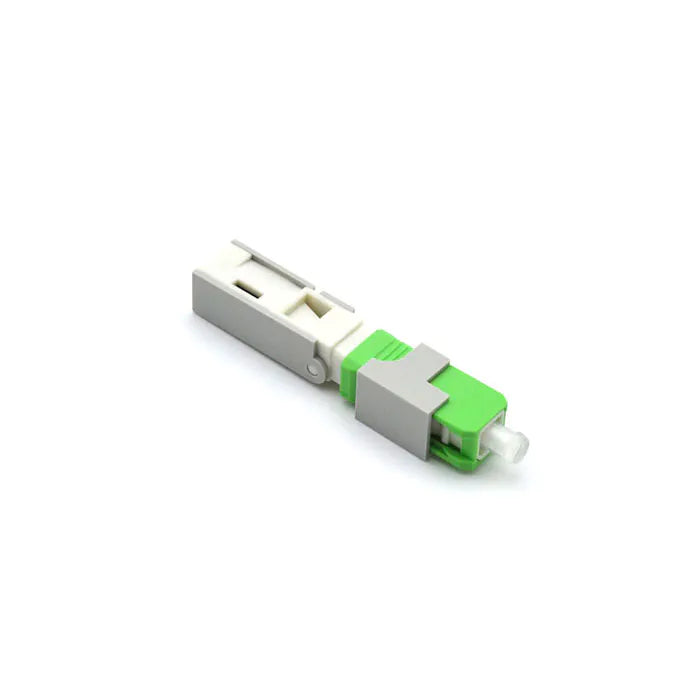

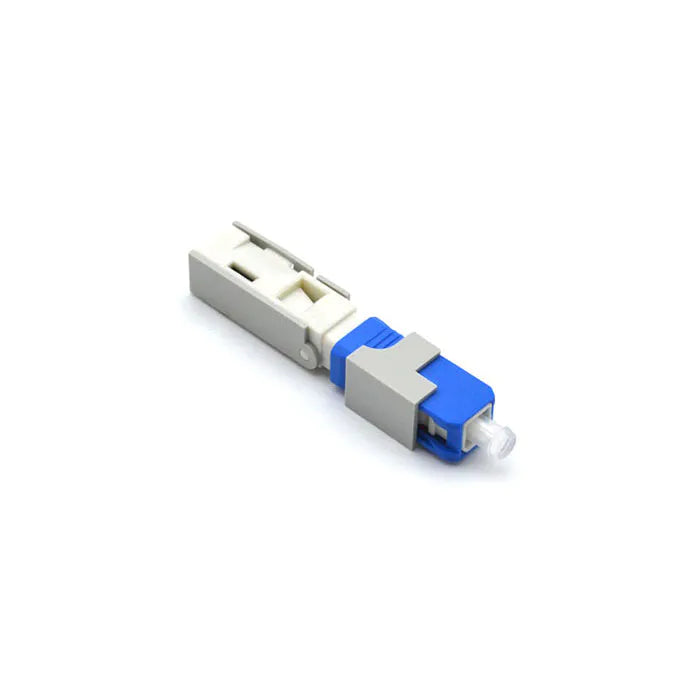

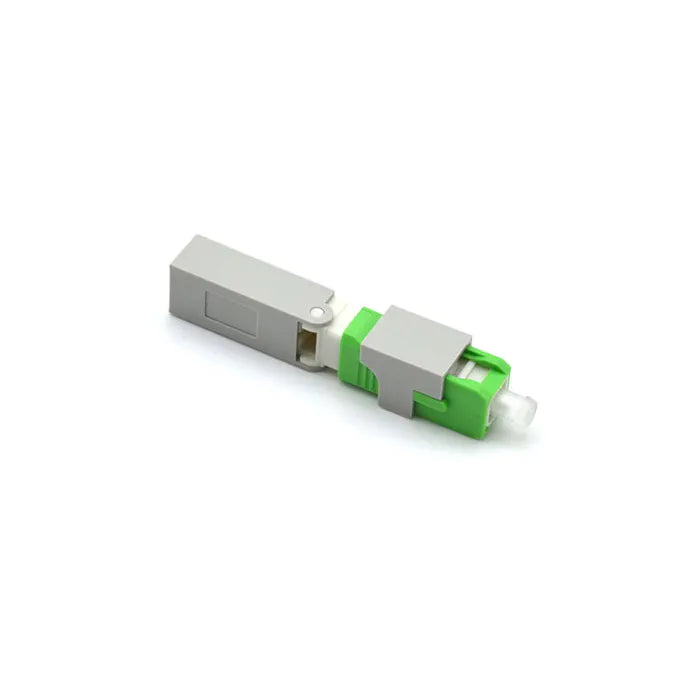

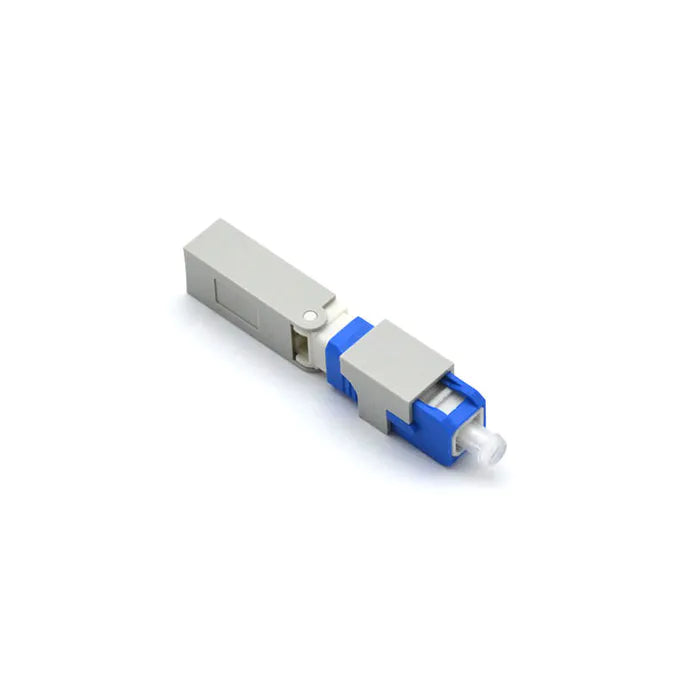

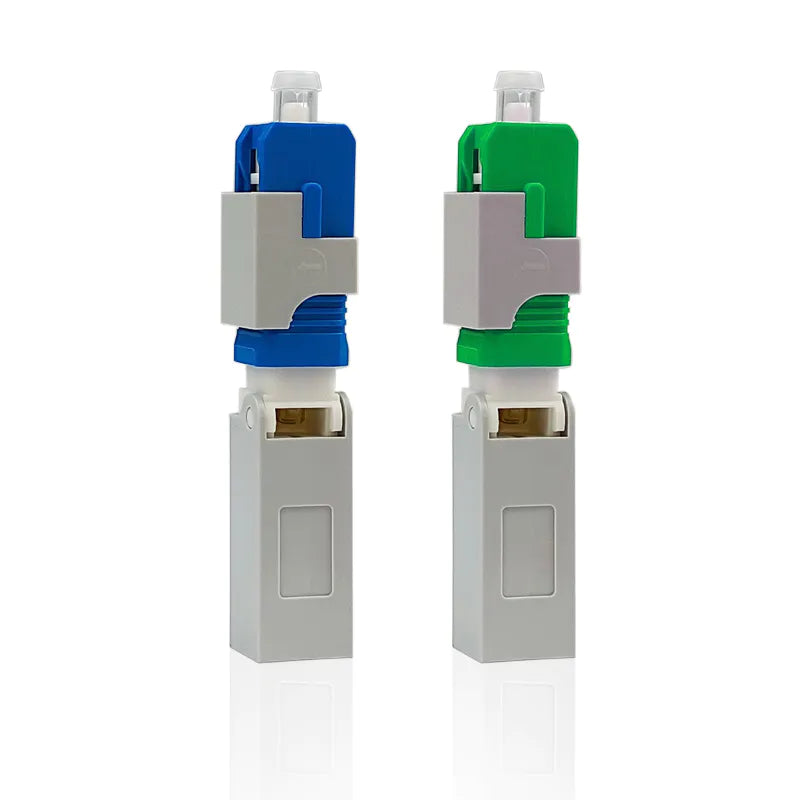

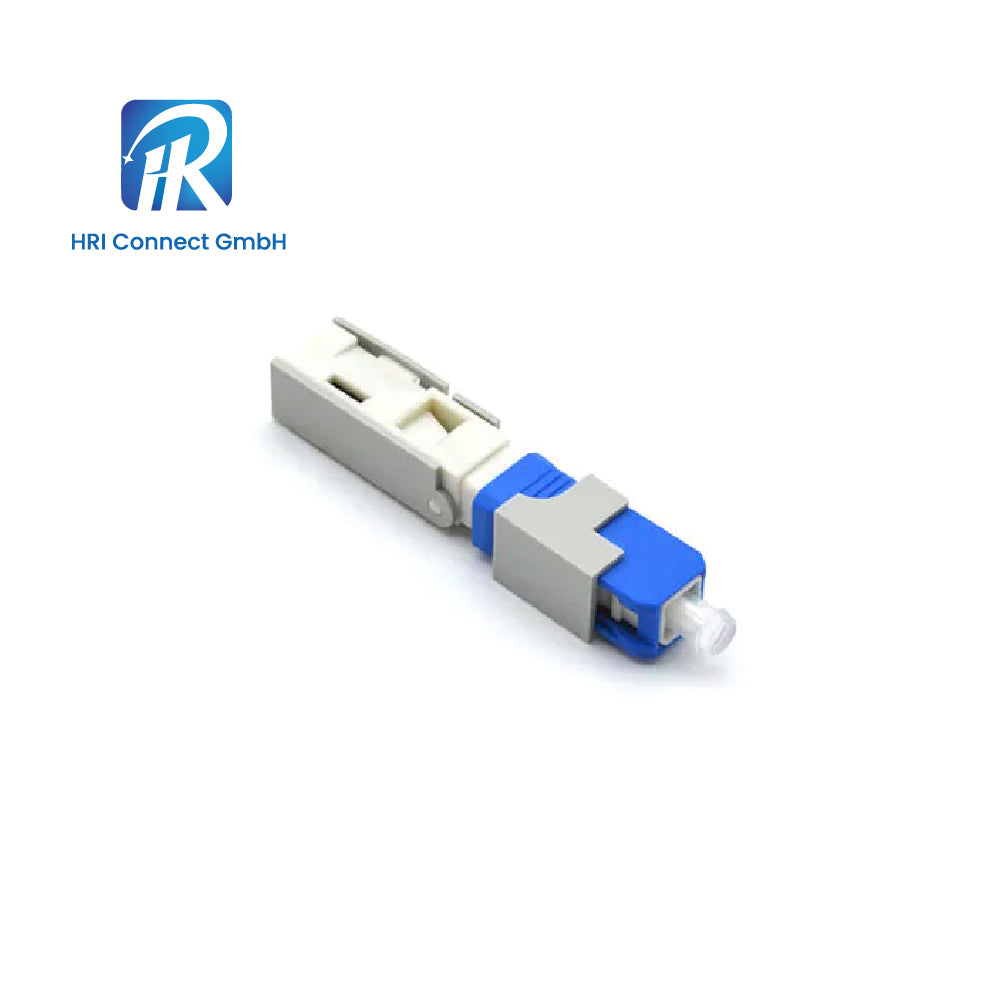

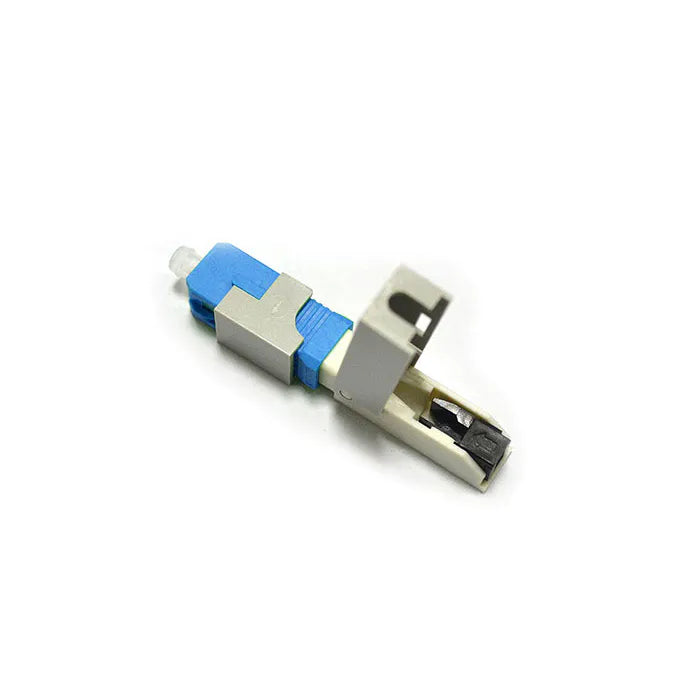

Clamshell Fiber Optic Fast Connector Green 55mm For FTTH Drop Cables

Clamshell Fiber Optic Fast Connector Green 55mm For FTTH Drop Cables

Model: L5505A

MOQ: >500

Material: ABS

Brand: HRI

Delivery Time: 5-25 days

Start Port: Shenzhen

Supply Ability: 30000pcs/day

View full details

Product Information

HRI Field Assembly Optical Connector is designed for fast and simple field termination of a single fiber, without polishing or epoxy. The Connector is made with precision and high-quality Zirconia ferrules and provides a highly reliable connection in most network applications. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm, and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.

Product information

Type Mode

SC/APC(UPC) Connector

 Applicable for

0.9mm Tight Buffer Fiber, 2.0mm,

3.0mm Drop Cable
Durability(1000 Mating) 0.2dB Max. Tight Buffer Diameter 250μm
Fiber Mode Single-mode Operation Time About 100s(no fiber cut)
Insert Loss Max≤0.5dB, Average≤0.3dB Return loss APC≥50dB, UPC≥45dB
 Fastening Strength of Naked Fiber >5 N  Fastening Strength of Naked Fiber holder >10 N
Operating Temperature -40°C~+75°C Storage Temperature -40°C~+85°C
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um

Model

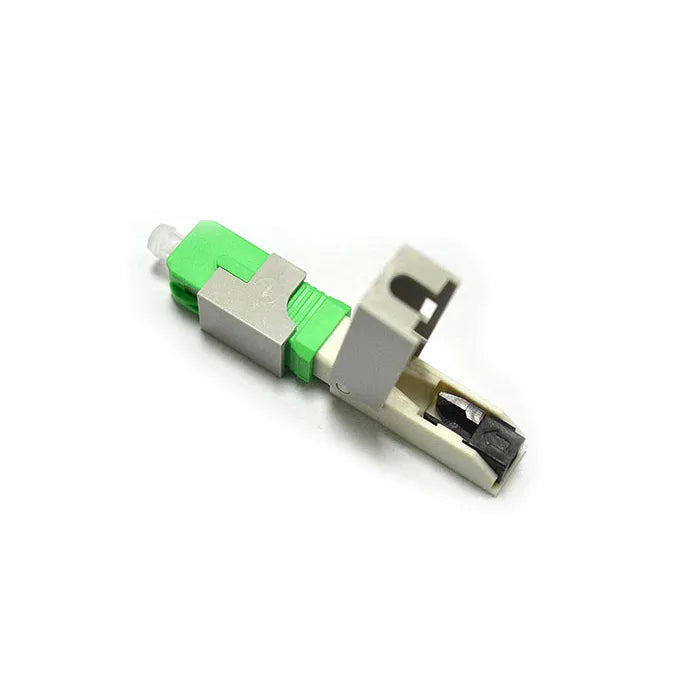

  • SC/APC-L5505A

  • SC/UPC-L5505A

Product Features

This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.
Connector Type: SC
Fiber Application: Singlemode, Multimode
Fiber Type: Simplex
Number of Fibers: 1
Maximum Cable Diameter (mm):2X3mm
Connector Ferrule: Ceramic

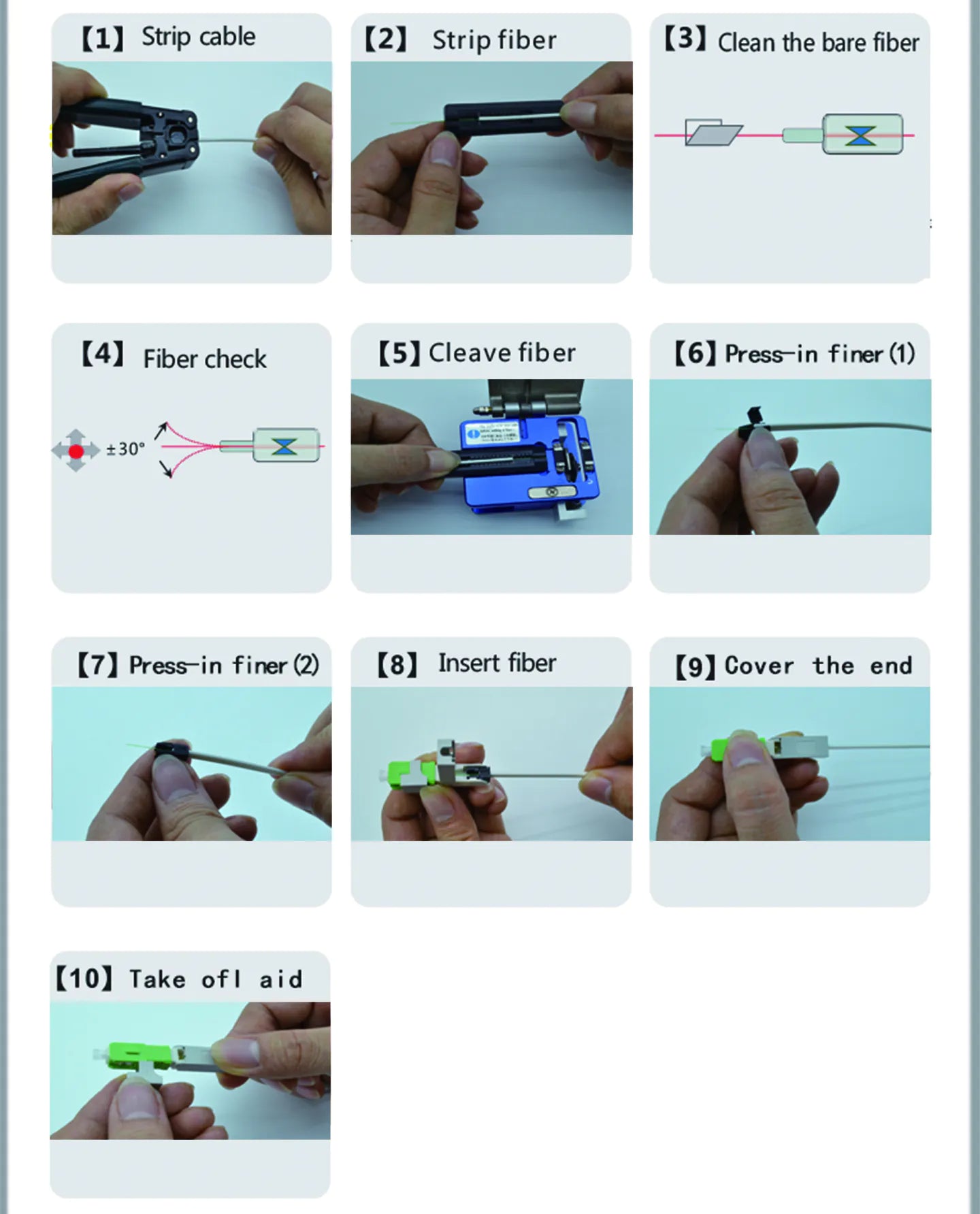

Field Installation Connector Operation Manual SC/UPC(APC)

  • This product is suitable for 3x2/Φ2/Φ3mm Rubber-insulated fiber optic drop cable
