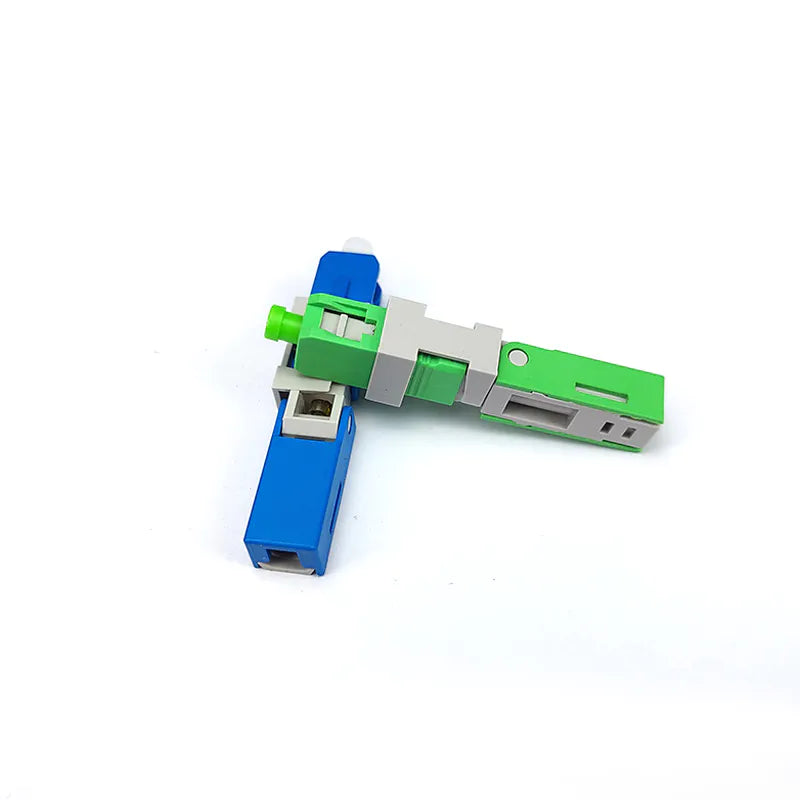

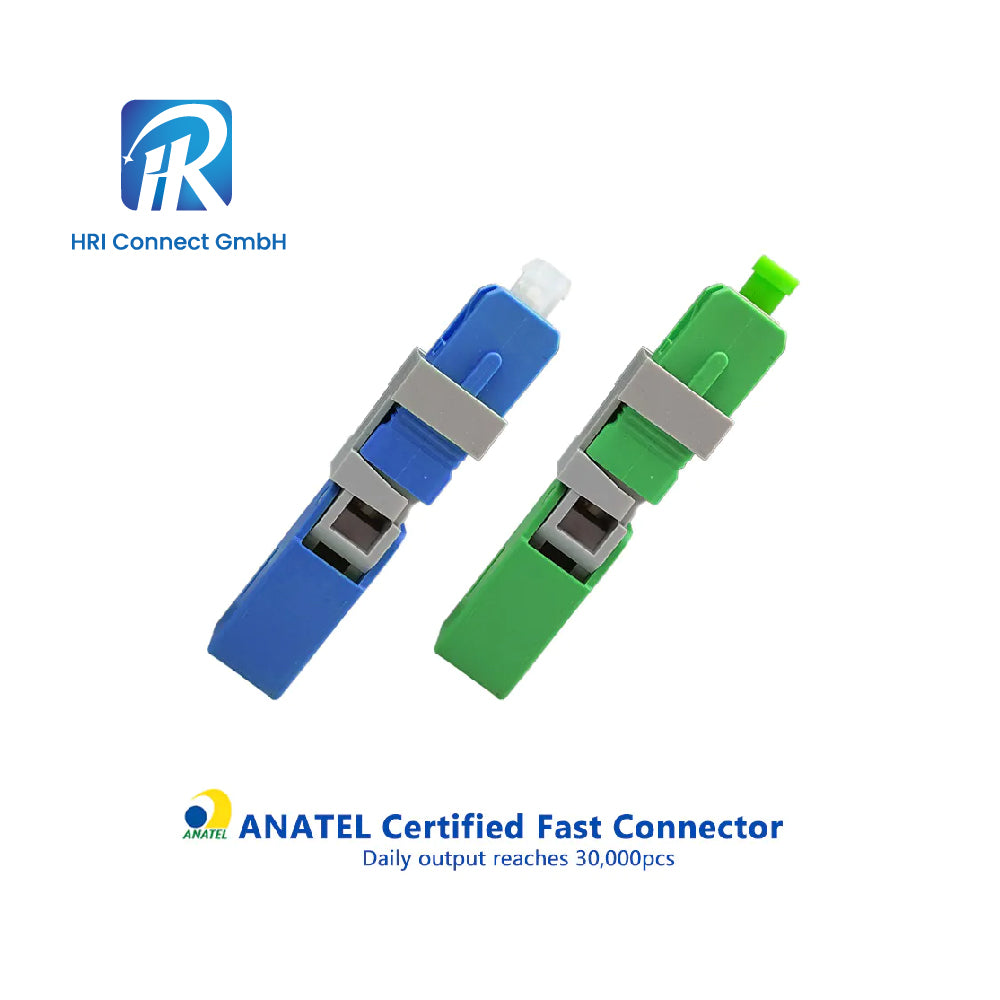

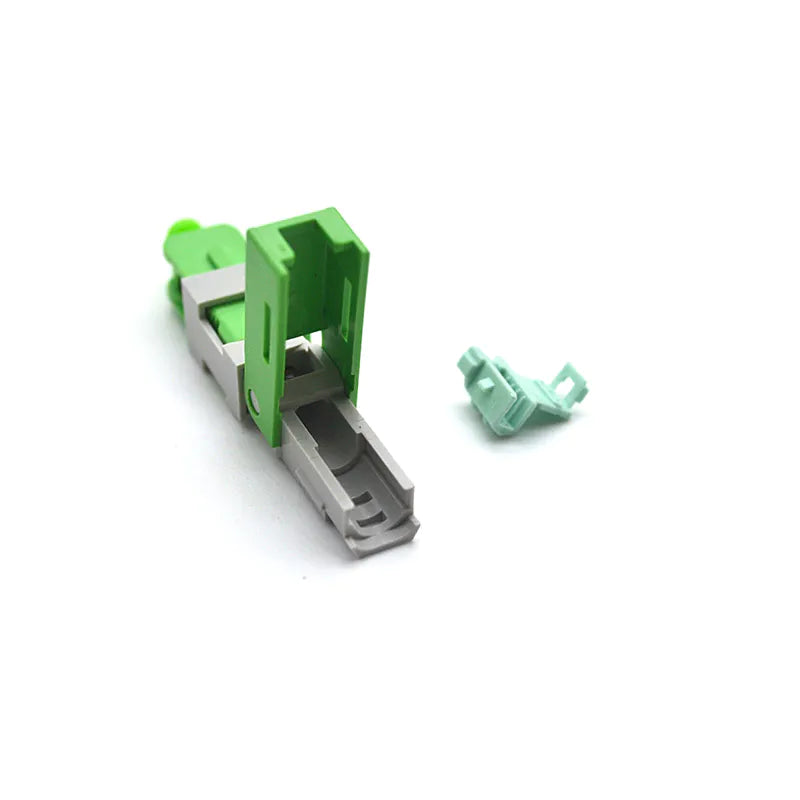

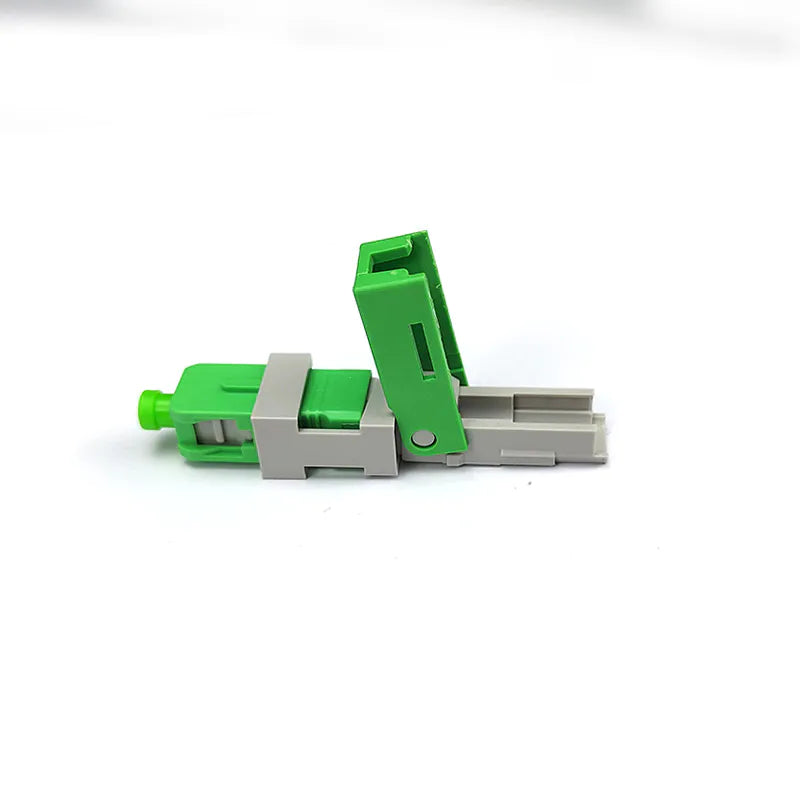

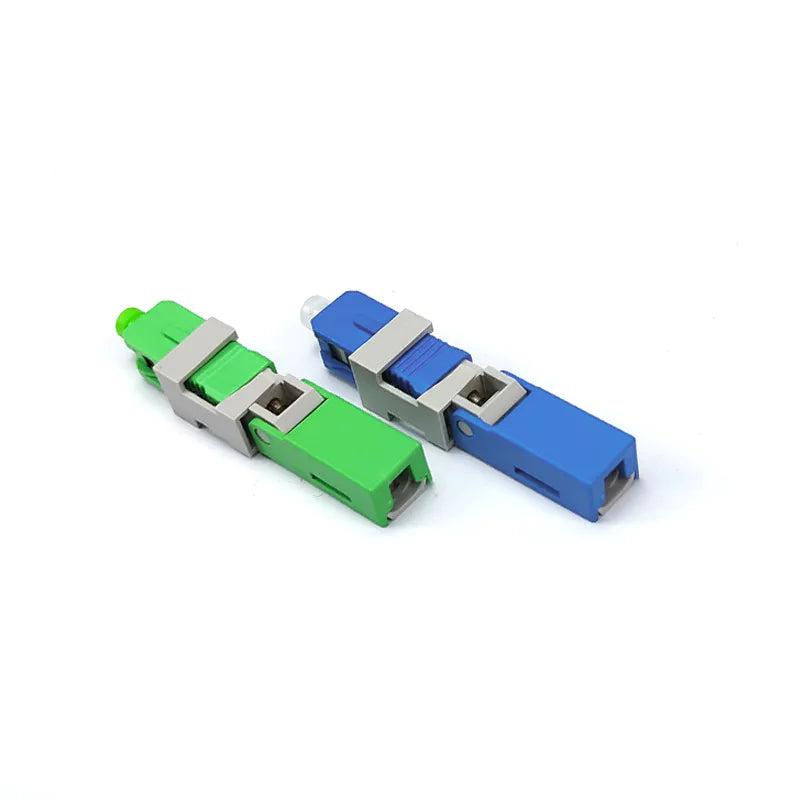

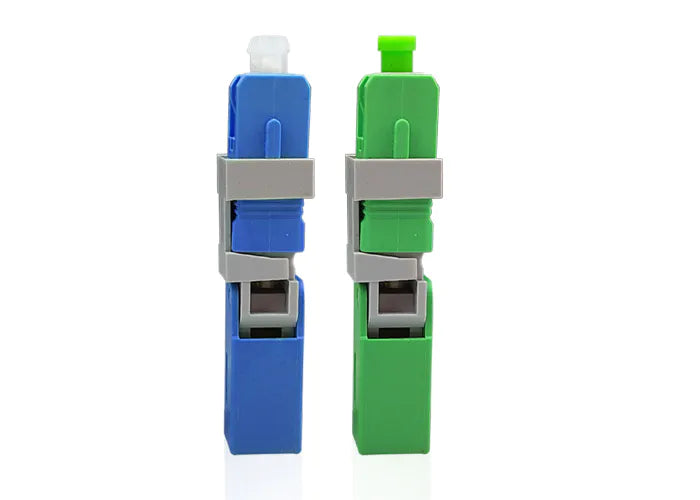

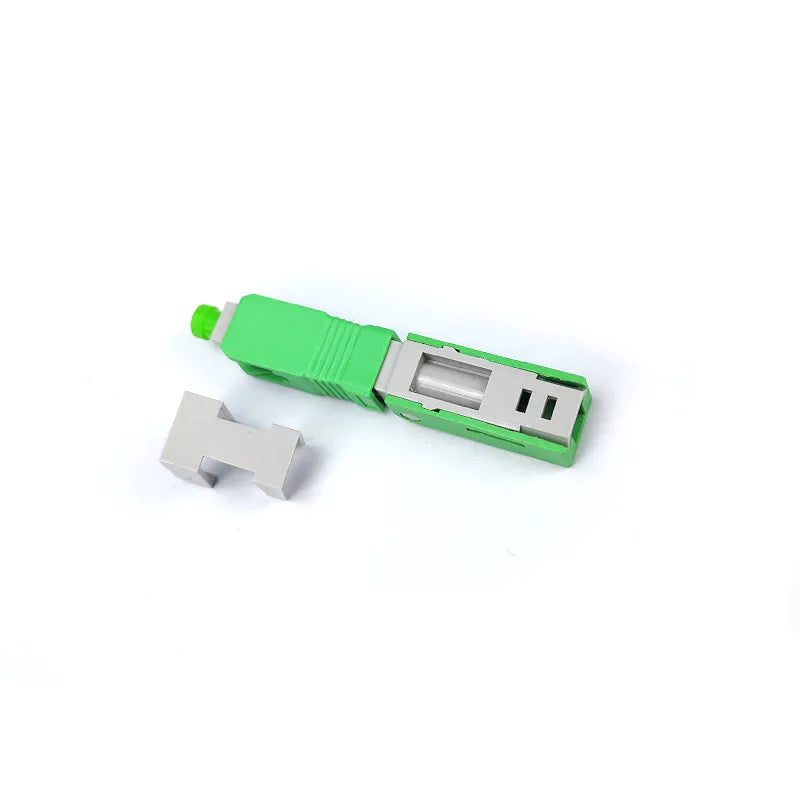

ANATEL Certificated Click Tipo

ANATEL Certificated Click Tipo

Model: 5505B

MOQ: >500

Material: ABS

Brand: HRI

Delivery Time: 5-15days

Start Port: Shenzhen

Supply Ability: 30000pcs/day


View full details

Product Description

Anatel certificated fast connectors make fiber terminations quick, easy, and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.

Our fast connector can greatly reduce the assembly and setup time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end-user site.

Product information

Type Mode SC/APC(UPC) Connector Applicable for

0.9mm Tight Buffer Fiber, 2.0mm,

3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)125μm ( 657A & 657B ) Tight buffer diameter 250μm
Fiber mode  Single-mode Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm) Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N Fastening strength of naked fiber holder >10 N
>50 N Using temperature -40~+75°C
IL ≤ 0.5dB  RL ≤ 5dB Mechanical durability (500 times)

 IL ≤ 0.5dB  RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)  IL ≤ 0.

Model

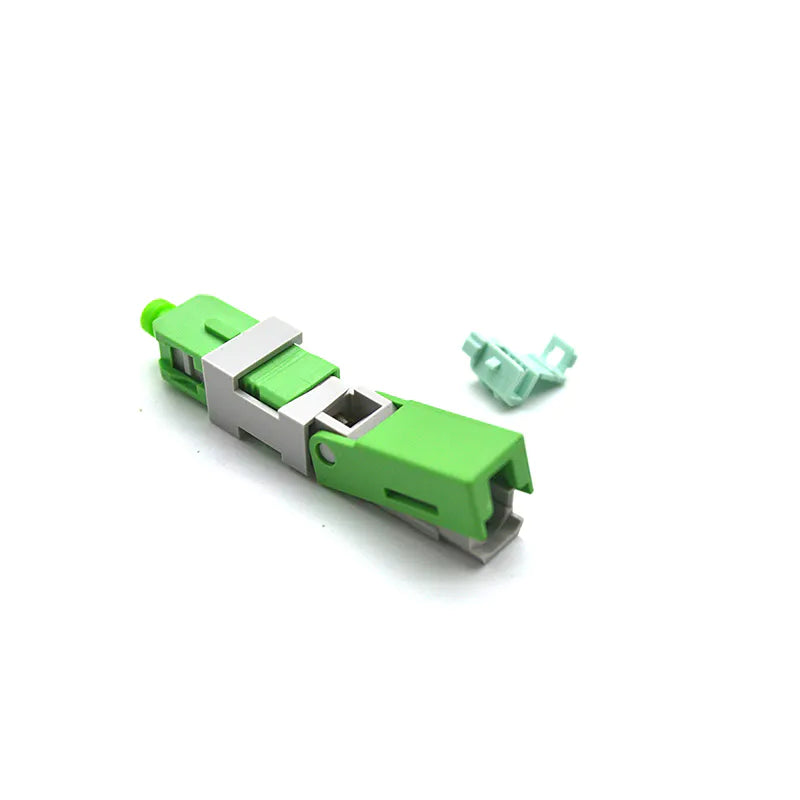

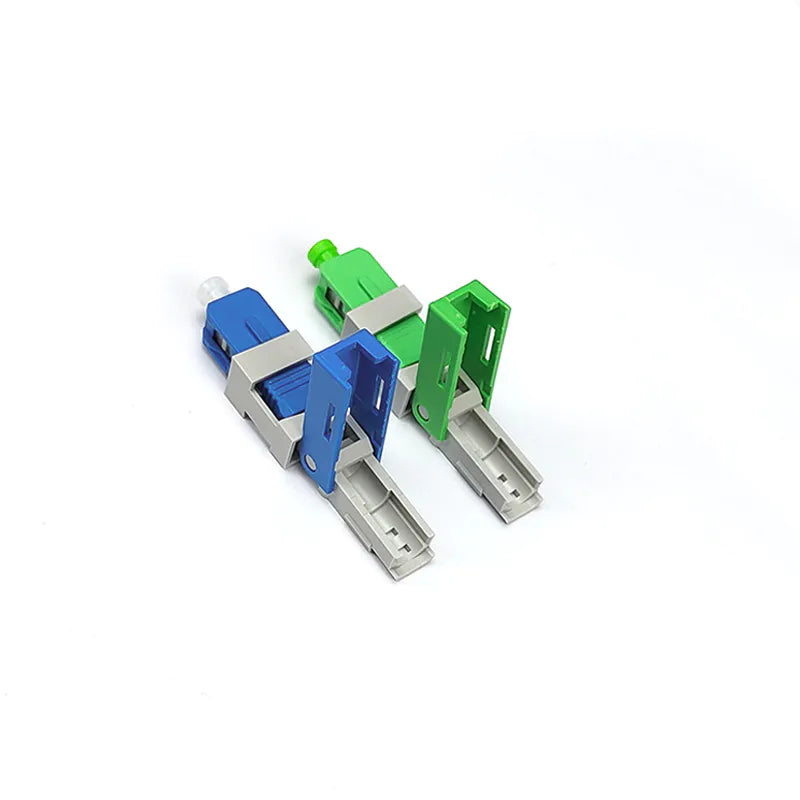

  • SC/APC-L5505B

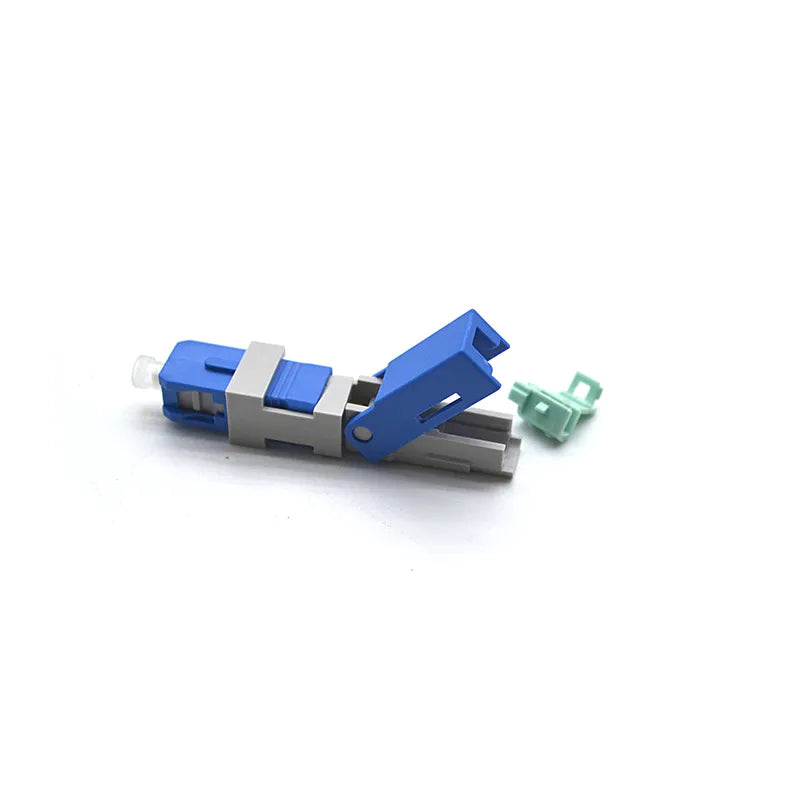

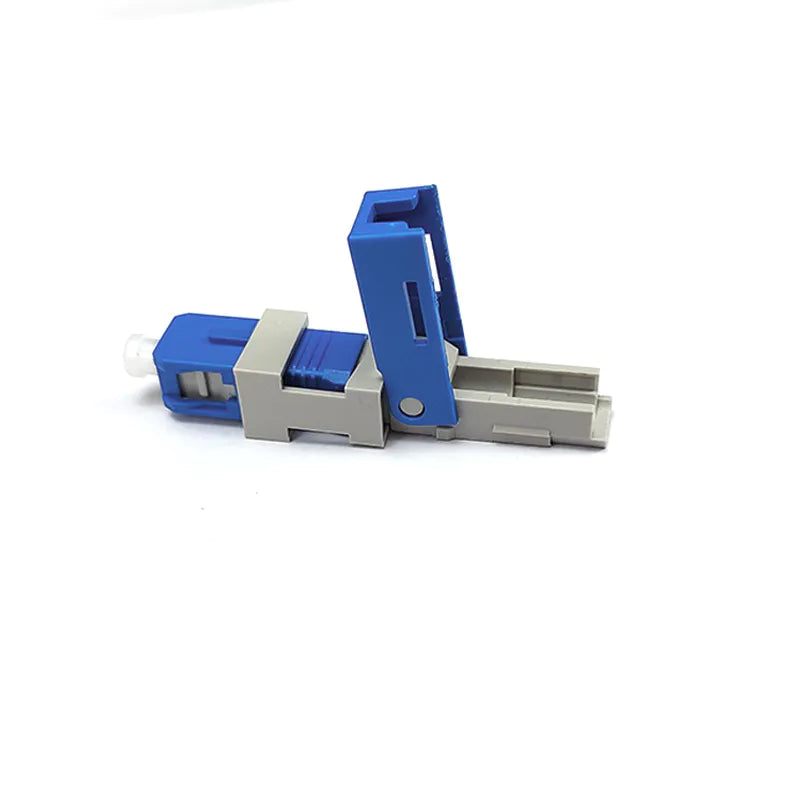

  • SC/UPC-L5505B

Product Features

1. Comply with TIA/EIA and IEC.

2. Quick and easy fiber termination.

3. Rohs compliant

4. Reusable termination capability( up to 5 times)

5. Easy to deploy fiber solution.

6. High success rate of connections.

7. Low insertion %back reflection.

8. No special tools required.

Applicable Scope

1. All-fiber interconnection

2. Telecom distribution and local area networks

3. Ftth and FTTx

4. Passive optical networks(ATM, WDM, Ethernet)

5. Broadband, Cable TV(CATV)
