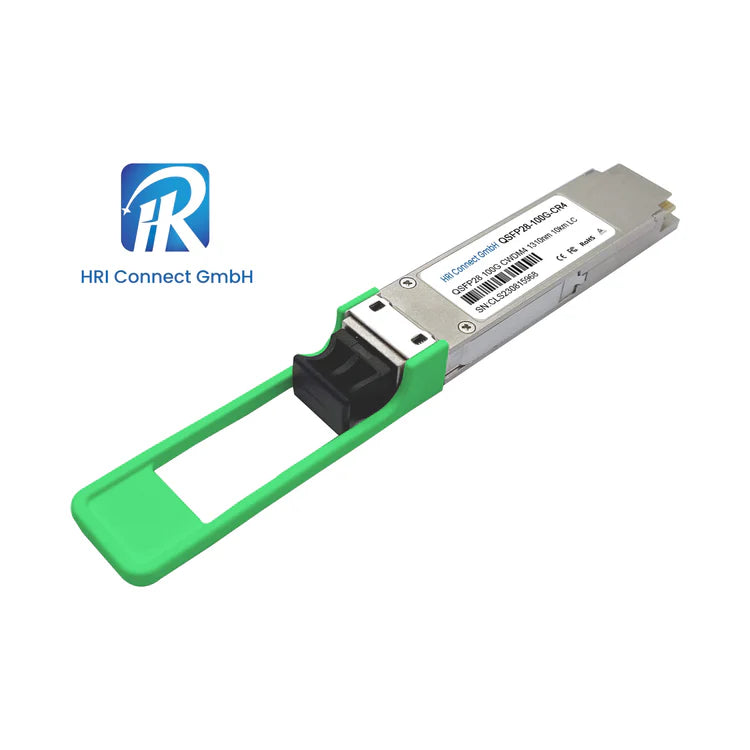

100G BiDi QSFP28(40g-100g Transceivers)

100G BiDi QSFP28(40g-100g Transceivers)

QSFP28 100G family are new generation of 100G transceiver modules solution based on QSFP form factor. They are compliant with MSA and the IEEE 802.3ba. Digital diagnostics functions are available via an I2C interface.

View full details

Product information

Package Form Part No. Fiber Type Data Rate Range Wavelength Reach Port Case Temperature range
QSFP28 CL100GPAM4SR MMF 100G 850nm 100m LC Com.
QSFP28 CL100GQSFPSR4 MMF 100G 850nm 100m MPO Com.
QSFP28 CL100GQSFPDR1 SMF 100G 1310nm 500m LC Com.
QSFP28 CL100GQSFPFR1 SMF 100G 1310nm 2km LC Com.
QSFP28 CL100GQSFPPSM4-02 SMF 100G 1310nm 2km MPO Com./Ind.
QSFP28 CL100GQSFPCW4-02 SMF 100G CWDM4 2km LC Com.
QSFP28 CL100GQSFPPSM4-10 SMF 100G 1310nm 10km MPO Com.
QSFP28 CL100GQSFPLR1 SMF 100G 1310nm 10km LC Com.
QSFP28 CL100GQSFPER1 SMF 100G 1310nm 40km LC Com.
QSFP28 CL100GQSFPCW4-10 SMF 100G CWDM 10km LC Com.
QSFP28 CL100GQSFPLR4 SMF 100G LAN WDM (COB) 10km LC Com.
QSFP28 CL100GQSFPLR4 SMF 100G LAN WDM (box) 10km LC Com.
QSFP28 CL100GQSFPRX10 SMF 100G LAN WDM 10km LC Com.
QSFP28 CL100GQSFPLR4-DR SMF 100G/112G LAN WDM 10km LC Com.
QSFP28 CL100GQSFPLR4-20 SMF 100G LAN WDM 20km LC Com.
QSFP28 CL100GQSFPLR4-40 SMF 100G LAN WDM 40km LC Com./Ind.
QSFP28 CL100GQSFPER4/I SMF 100G LAN WDM 40km LC Com./Ind.
QSFP28 CL100GQSFPZR4/I SMF 100G LAN WDM 80km LC Com.
QSFP28 CL100GQSFPZR100 SMF 100G LAN WDM 100km LC Com.
QSFP28 CL100GQSFPDW10-** SMF 100G O-band DWDM 10km  LC Com.
QSFP28 CLQSFP100GLP Loopback 100G - 0 - Com./Ind.
QSFP28 BIDI CL100GQBD273310 SMF 100G 1270nm 10km LC Com.
QSFP28 BIDI CL100GQBD332710 SMF 100G 1330nm 10km LC Com.
QSFP28 BIDI CL100GQBD40-A SMF 100G Anm 40km LC Com.
QSFP28 BIDI CL100GQBD40-B SMF 100G Bnm 40km LC Com.
